Volkswagen Lavida 2013–2019 12.3 Digital Cluster Installation Guide
This tutorial explains the correct Volkswagen Lavida 2013–2019 12.3 digital cluster installation route based on the PQ-platform mechanical instrument cluster conversion method shown in the iKagoo Lavida technical material.
This page is written for installers, buyers, and after-sales users who need the real installation order: pre-removal warning settings, original cluster removal, board-transfer handling, small auxiliary board checks, USB cable routing, fuel calibration, Physical Light correction, and final troubleshooting.
Read This Before Removing the Original Cluster
This guide is intended for Volkswagen Lavida 2013–2019 vehicles using the matching PQ-platform mechanical instrument cluster route. The year range is only a starting point. The original dashboard and cluster shape must match the installation reference before the work begins.
What this tutorial covers
This page covers the VW Lavida digital dashboard installation route from the original mechanical cluster to the 12.3-inch digital cluster assembly, including original-board handling, optional small auxiliary board transfer, USB cable routing, and post-install calibration.
What this tutorial does not promise
This is not a blanket guarantee for every Lavida dashboard worldwide. If your original instrument cluster shape or dashboard opening is different from the reference route, confirm compatibility before installation.
Important plug-and-play boundary: plug-and-play means the supplied route avoids cutting or splicing the original wiring harness. It does not mean no dashboard removal, no original-board transfer, no setup, or no calibration.
Fitment Boundary for This Lavida Digital Cluster Tutorial
Correct installation route
This guide applies to the Lavida PQ-platform digital cluster installation route where the original vehicle uses the matching mechanical needle instrument cluster shown in the installation material.
Do not confirm by year alone
Volkswagen Lavida naming, dashboard versions, and regional configurations may vary. A vehicle year such as 2013–2019 does not replace visual confirmation of the original mechanical cluster shape.
Steering and fuel-type note
The source route notes support for left-hand-drive and right-hand-drive applications, and also includes petrol, diesel, and hybrid route notes where the original cluster architecture matches.
Best confirmation method
Before ordering or opening the dashboard, compare the original mechanical cluster and dashboard opening with the reference images and installation video route.
Installer logic: confirm the physical cluster shape first, then confirm the warning-setting route, then proceed to the bench work. This order reduces avoidable installation errors and after-sales confusion.
Tools and Preparation Before Installation
A clean setup matters because this installation includes internal instrument cluster handling. Do not treat this as a simple screen swap. The original cluster should be opened on a clean bench, not while it is hanging inside the dashboard.
Basic tools
- Plastic trim removal tools
- Suitable screwdrivers
- Clean padded workbench
- Good lighting
Electronic handling
- Release body static before touching the PCB
- Hold circuit boards by the edges
- Do not touch electronic components directly
- Do not press on the LCD surface
Before closing the dash
- Check all connectors
- Keep both USB cables accessible
- Power on and test first
- Only reinstall trim after the display test passes
Do not remove the original instrument buzzer. The Lavida route warns that removing the original buzzer can cause a combination instrument fault.
Installation Flow Overview
Before starting the detailed Volkswagen Lavida instrument cluster replacement guide, understand the full route. This prevents users from removing the dashboard first and then discovering that a menu setting, small board, or USB route was missed.
Pre-Removal Warning Settings
The official Lavida route places this step before the mechanical cluster is removed. Do not skip it. These warning settings reduce unnecessary post-install confusion.
Required menu preparation
- Set the winter tire warning to the maximum available value.
- Set the speed limit warning to the maximum available value.
- Enter the multi-function speed-limit menu.
- Switch both warning functions off.
- Only then remove the original mechanical cluster.
Video reference: warning setting route
What this confirms: warning settings belong before removal, not after the new digital cluster is already installed.
Detailed Volkswagen Lavida Digital Cluster Installation Tutorial
The following section reorganizes the Lavida installation route into practical stages. The goal is not to make the process look easier than it is. The goal is to show the correct order so the installer understands what happens before, during, and after the Lavida mechanical cluster to digital cluster conversion.
Dashboard Trim and Original Cluster Removal
Start by confirming the dashboard and original mechanical cluster baseline. Then release the surrounding trim progressively instead of forcing one corner.
Step 1. Confirm the original mechanical cluster baseline
Check that the dashboard and mechanical cluster shape match the supported Lavida PQ route before any trim is removed.
Step 2. Begin releasing the trim around the cluster area
Use plastic trim tools and release the panel carefully to avoid clip damage and visible trim marks.
Step 3. Continue opening the cluster-surround path
Work evenly across the surrounding edges. Do not pull hard on one side if another side is still locked.
Step 4. Expose the original cluster fully
Make sure the original mechanical cluster is fully accessible before pulling it forward.
Step 5. Remove the original mechanical cluster
Bring the original cluster forward carefully and disconnect the connector without twisting the unit.
Bench Work and Original Board Transfer
This is the most important part of the Lavida digital dashboard installation. The original vehicle data route depends on proper handling of the retained original cluster components.
Static protection matters: release body static before touching the internal board. Hold the PCB by the edges and avoid touching electronic parts directly.
Step 6. Move the original cluster to a clean padded bench
Do not open the original instrument cluster while it is still hanging inside the dashboard.
Step 7. Open the original cluster housing
Release the housing carefully and keep screws and small parts organized for reassembly.
Step 8. Access the internal board area
Use anti-static handling and avoid pressure on sensitive board components.
Step 9. Begin the original-board transfer route
The digital display route depends on the retained original vehicle board logic being seated correctly inside the new assembly.
Step 10. Retain the required original hardware path
Do not trap wires, tilt boards, leave connectors half-seated, or remove the original buzzer route.
Small Auxiliary Board Check for High-Spec Mechanical Clusters
Some higher-spec mechanical clusters include a small auxiliary circuit board behind the original small display. If your original cluster has this board, it must be transferred and fixed correctly inside the new digital cluster assembly.
Video reference: small-board explanation
Video reference: small-board installation
Critical route note: if the original cluster does not have this small board, no auxiliary-board installation is required. If the original cluster does have it and the board is omitted or left loose, the route may show inaccurate fuel-level behavior or instrument fault warnings.
Digital Cluster Reassembly and USB Cable Routing
After the original board route and optional small-board route are handled correctly, reassemble the upgraded cluster and route the two USB cables before the dashboard is closed.
Step 11. Reassemble the upgraded cluster on the bench
Close the housing evenly and apply pressure only to housing edges, not the LCD surface.
Step 12. Check the housing structure before returning to the car
Confirm the housing is closed evenly, no wires are pinched, and the retained buzzer path remains in place.
Step 13. Return the upgraded cluster to the dashboard
Reconnect the harness and place the cluster carefully back into the instrument opening.
Step 14. Route the two USB cables before final closure
One USB cable is for wired software upgrade access. The other is for wired projection where supported. Keep both accessible near the lower-left storage area under the steering wheel.
Power-On Test and Final Trim Installation
Do not close the dashboard immediately. First check startup, visible warnings, screen behavior, and basic display response.
Step 15. Power on and test before final closure
Check display startup, warning behavior, and general cluster response before securing all trim pieces.
Step 16. Reinstall the surrounding trim
Only reinstall trim after the display test passes and the cluster is seated correctly.
Step 17. Verify the final installed result
Confirm the screen looks normal, the housing sits evenly, and the main display functions respond as expected.
Post-Installation Settings and Calibration
After the physical installation, the Lavida 12.3 inch digital instrument cluster installation still requires settings verification. Fuel display, turn-signal display, and vehicle model graphics should be checked before the vehicle is returned to daily use.
Fuel Tank Capacity Calibration
If the fuel gauge is not full after refueling, do not immediately assume hardware failure. The issue may be calibration.
Calibration route
- Fill the tank completely.
- Drive a few hundred meters.
- Enter Driving Data → Refillable Amount.
- Read the refillable amount value.
- Enter Settings → Configuration Calibration → Fuel Tank Capacity.
- Input that value.
- After correct calibration, the refillable amount should return to 0 and the gauge should display full.
Video reference: fuel calibration
Physical Light Setting on the PQ Route
On the relevant PQ-platform setting route, Physical Light must remain disabled. If it is enabled incorrectly, the turn-signal display may not show correctly.
Video reference: Physical Light correction
Correction logic
If Physical Light was enabled by mistake, follow the correction route shown in the video and then verify the turn-signal display again.

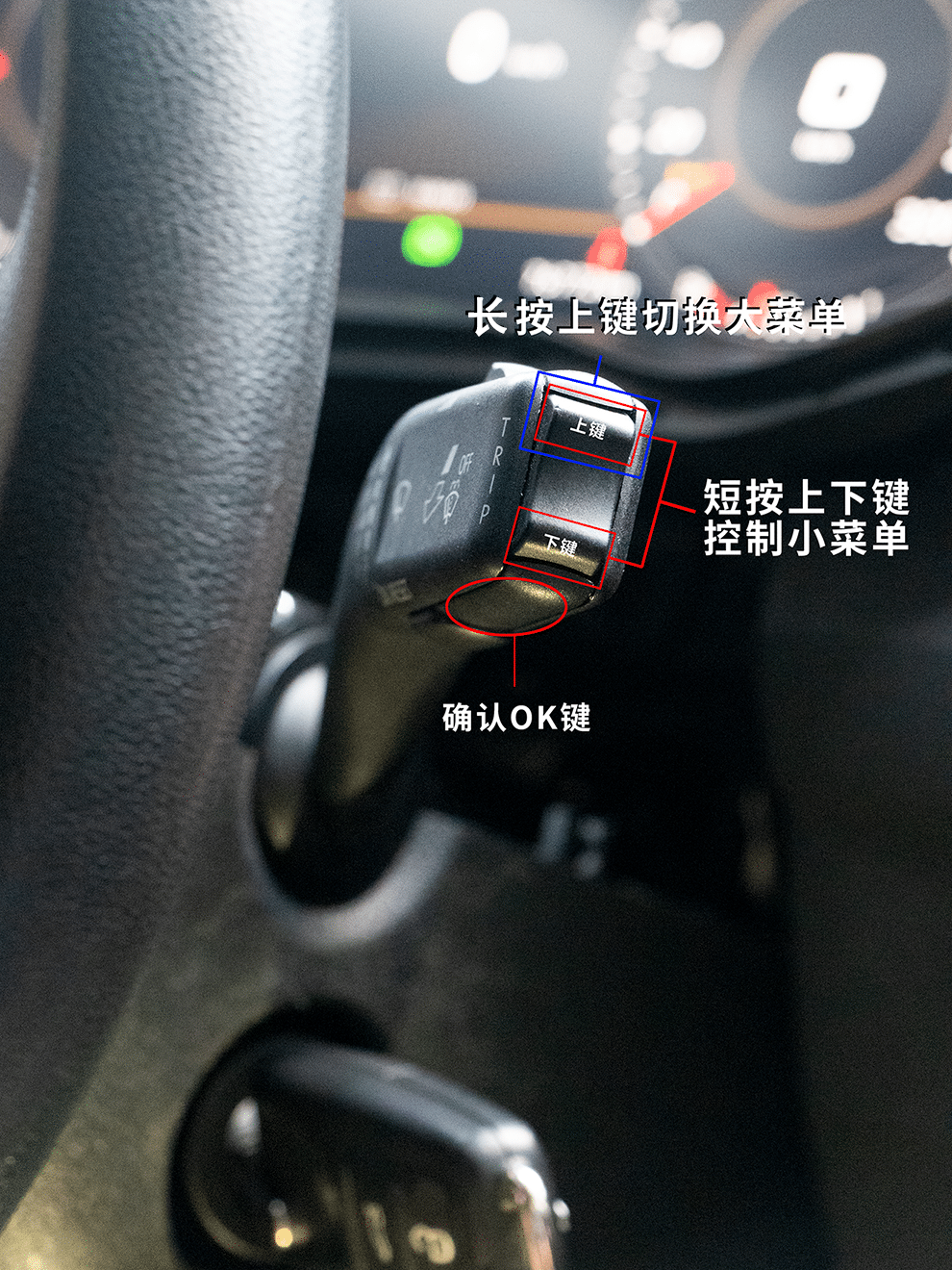

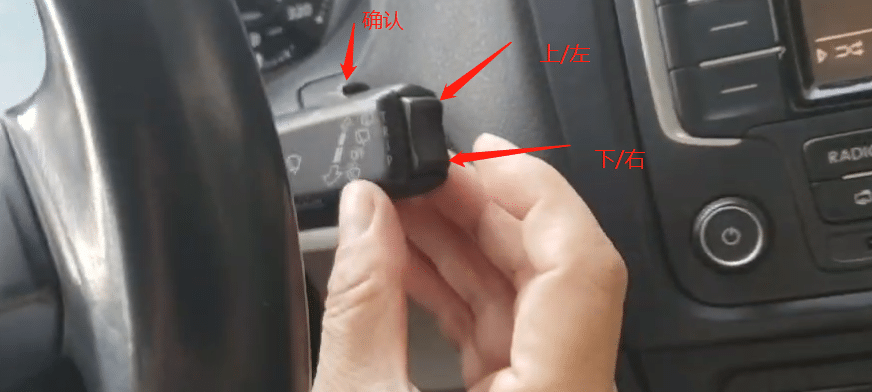

Vehicle Model Selection and Control Logic
Some functions depend on the original steering wheel protocol, while some vehicles may use the wiper-stalk control route. If the small vehicle graphic does not match the real vehicle, use the vehicle-model-selection route in the cluster settings.
Common Problems After Installation
Use this table before assuming the digital cluster is defective. Many post-install issues come from skipped calibration, an incorrect setting, loose connectors, or missed original component transfer.
| Problem | Possible Cause | First Check |
|---|---|---|
| Fuel gauge is not full after refueling | Fuel tank capacity has not been calibrated | Check Driving Data → Refillable Amount, then calibrate fuel tank capacity. |
| Turn signal display is not shown correctly | Physical Light setting may be enabled incorrectly | Disable Physical Light on the relevant PQ-platform setting route. |
| Instrument fault warning appears | Original buzzer or small auxiliary board may not be retained correctly | Check the original buzzer route and small-board transfer if the original cluster included it. |
| Wrong vehicle graphic appears | Vehicle model selection does not match the actual vehicle | Use the vehicle-model-selection menu, then turn the car off and lock it for a few minutes. |
| USB update cable cannot be used later | USB cable may have been hidden inside the dashboard | Route both USB cables to an accessible lower-left storage area before final closure. |
| Screen does not start | Connector may not be fully seated, or internal board route may need rechecking | Recheck harness connection, internal board seating, and power-on behavior before closing trim. |
| Screen has pressure marks or lines | Display may have been pressed during assembly | Handle the cluster by the housing edges. Do not press directly on the LCD surface. |
Final Installer Checklist
Use this checklist before returning the vehicle to the customer or closing the job. It is especially useful for installers handling the VW Lavida LCD dashboard installation tutorial route for the first time.
| Check Item | What to Verify | Why It Matters |
|---|---|---|
| Display startup | Cluster boots normally with no abnormal delay or visible display fault. | Confirms the basic power and board route is healthy before final closure. |
| Warning settings | Winter tire and speed warning route was handled before removal. | Prevents avoidable post-install confusion from skipped menu preparation. |
| Small auxiliary board | If the original cluster had it, it was transferred and fixed correctly. | Prevents fuel readout errors and instrument fault warnings. |
| Original buzzer | The original buzzer path remains installed. | Avoids combination-instrument fault behavior. |
| Screen condition | No pressure marks, lines, dark areas, or cracks. | Confirms the display was not damaged during handling. |
| Fuel display | Gauge reads correctly after fuel calibration if needed. | Ensures the post-install fuel route is actually usable. |
| Turn-signal display | Physical Light remains disabled unless specifically corrected by the official route. | Prevents lost or incorrect turn-signal display behavior. |
| USB cable access | Both USB leads remain reachable near the lower-left storage area. | Keeps future update or projection access practical. |
| Fitment and trim | Cluster sits evenly and trim closes without forcing the display. | Protects both appearance and screen safety. |
| Software version photo | Take and save a photo of the installed cluster version screen. | Useful for future support or update confirmation. |
Related iKagoo Support for Lavida Digital Cluster Users
This tutorial is designed to reduce installation mistakes. If the original dashboard or mechanical cluster route is uncertain, confirm fitment before installation rather than forcing the wrong route.
VW / Audi Digital Instrument Cluster User Manual
Use the broader manual for post-install usage, digital cluster operation, and update-related guidance.
VW 12.3 Digital Cluster Product Page
Use the product page only after confirming that your original dashboard and cluster route match the supported installation path.
Fitment Confirmation
Send the original dashboard photo, original cluster photo, and vehicle year if the route is uncertain.
FAQ: Volkswagen Lavida 2013–2019 Digital Cluster Installation
Is this guide for every Volkswagen Lavida by year alone?
No. This guide is for the Lavida route that matches the original mechanical cluster shape shown in the PQ-platform installation material. Year range alone is not enough.
What must be done before removing the original mechanical cluster?
Set the warning menus first. Adjust the winter tire warning and speed limit warning to maximum values, then switch both off through the original menu route before removal.
Does plug-and-play mean no dismantling or no setup?
No. Plug-and-play means no cutting or splicing of the original harness. Dashboard removal, original component transfer, USB routing, settings checks, and calibration may still be required.
Why is the small auxiliary board important?
Some high-spec mechanical clusters need it. If the original cluster includes this board and it is omitted or left loose, the route may show fuel-level errors or instrument fault warnings.
What do the two USB cables do?
They should remain accessible. One USB lead is for wired software upgrade access. The other is for wired projection where supported by the supplied version.
What should I do if the fuel gauge is not full after refueling?
Run fuel tank capacity calibration. Use the refillable amount value and enter it through Settings → Configuration Calibration → Fuel Tank Capacity.
Why should Physical Light remain disabled?
Because this relevant PQ route warns against enabling it incorrectly. If enabled incorrectly, the turn-signal display may not appear correctly.
Can the vehicle model graphic be changed?
Yes, where supported. If the small car graphic does not match the real vehicle, enter the vehicle-model-selection route, choose the matching model, then turn the car off and lock it for a few minutes.
