Mercedes W204 Android Head Unit Installation: 14-Step NTG4.5 Guide for 2011–2014
Mercedes W204 Android Head Unit Installation for the 2011–2014 NTG4.5 C-Class
This Mercedes W204 Android Head Unit Installation guide covers the 2011–2014 Mercedes-Benz C-Class W204 / S204 / C204 route using the NTG4.5-style system. The 14 visual stages below show how to remove the factory screen area, access the original head unit, connect the matched power and LVDS routes, mount the Android display and complete the checks that matter before the dashboard is closed.
Mercedes W204 Android Head Unit Installation: Which Years Does This Guide Cover?
The W204 dashboard can look similar across nearby production years, but the infotainment route is not the same. Use the year and factory-system boundary below before following the physical installation sequence.
Mercedes W204 Android Head Unit Installation: Quick Answers Before You Start
These are the practical questions that determine whether an installation goes smoothly before any trim is removed.
Is this guide for a 2011 Mercedes W204?
Yes, when the vehicle follows the matching 2011–2014 C-Class NTG4.5 route. The same guide covers the supported W204 / S204 / C204 configuration prepared for this product.
Does it also cover a 2008–2010 W204?
No. Those vehicles use the earlier NTG4.0 product route. Do not interchange the wiring or installation assumptions between the two versions.
Does a W204 Android screen require factory-wire cutting?
The intended iKAGOO route uses a matched harness without intentionally cutting supported factory wiring. Dashboard removal, adapters, cable routing and configuration are still required.
Why can the screen power on but have no sound?
Mercedes audio routing can depend on AUX, AMI, USB, amplifier or fiber-optic equipment. Power-on does not prove the audio route is complete. Check the order-specific audio connection before reassembly.
What must be tested before the dashboard is closed?
Test sound, original-system access, steering-wheel controls, reverse camera or parking display, Bluetooth, CarPlay or Android Auto, GPS and normal sleep/wake behavior.
Can an experienced DIY owner install it?
Yes, but this is an advanced DIY job rather than a simple screen swap. If the vehicle has previous wiring changes, a factory amplifier, fiber optics or complex camera equipment, professional installation is the safer route.
Mercedes W204 Android Head Unit Installation Preparation
Work methodically. Most installation problems come from forcing trim, mixing connectors or closing the dashboard before the electrical checks are complete.
Basic tools
- Plastic automotive trim-removal tools
- Correct screwdriver / Torx driver for the factory screws
- Soft protective cloth for dashboard surfaces
- Flashlight for connector inspection
- Cable ties or soft harness tape for final routing
Before removing anything
- Confirm this is the 2011–2014 NTG4.5 product route.
- Lay out the Android screen, bracket, main harness and supplied accessories.
- Do not connect or disconnect the multimedia system while it is powered.
- Photograph the original connector positions if this is your first W204 installation.
- Keep every factory screw and trim clip grouped by removal stage.
Mercedes W204 Android Head Unit Installation: 14 Visual Steps
Follow the sequence rather than jumping directly to the wiring. Each stage includes the action, the reason it matters and the checkpoint to complete before moving forward.

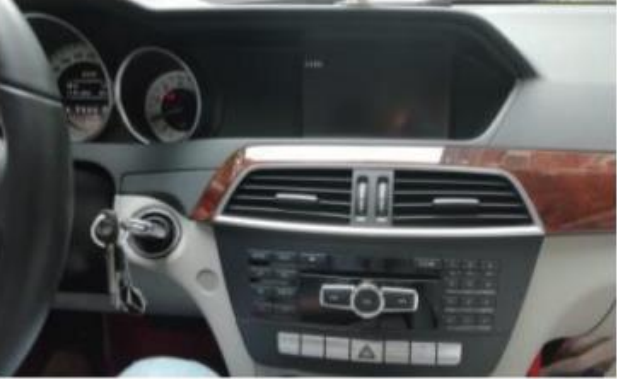

Power Down the Factory Monitor Before Disassembly
What should you do before touching the original W204 screen?
Switch the vehicle and factory multimedia system off and allow the original screen to shut down fully. Do not begin pulling connectors while the display or head unit is still active. Place a soft cloth around the center dashboard so removed trim cannot scratch the surrounding surfaces.
Why does this matter?
The next stages expose the screen, original host and communication wiring. Starting with the system powered increases the chance of unnecessary electrical faults and makes it harder to distinguish a real wiring problem from a fault created during installation.

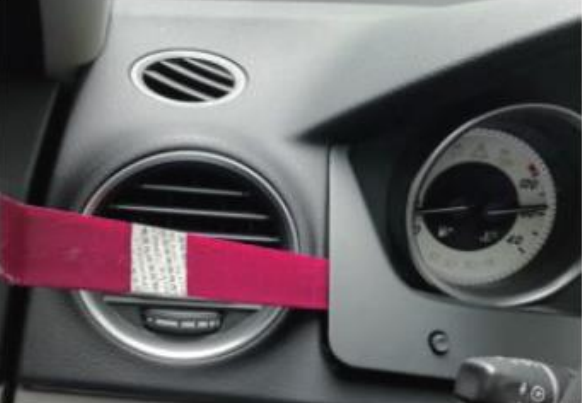

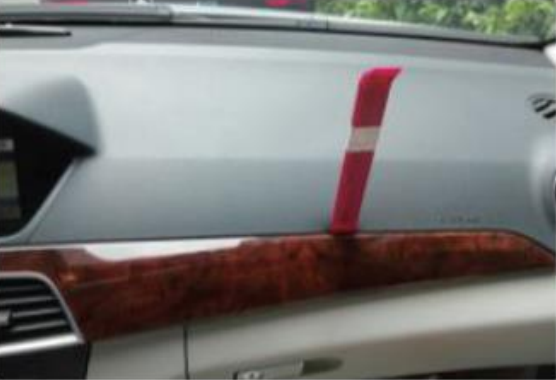

Release the Center Air-Vent Panel Carefully
How should the W204 center vent panel be removed?
Insert a plastic trim tool at the correct panel edge and release the retaining clips gradually. Work from one section to the next rather than lifting one corner aggressively. Once the clips begin to release, support the panel with your hand and pull it outward evenly.
What is the main risk here?
Old interior plastics can become less flexible with age. Twisting the panel or using a metal screwdriver can mark the dashboard or crack a retaining point. If a section refuses to move, inspect the next clip position rather than increasing force.

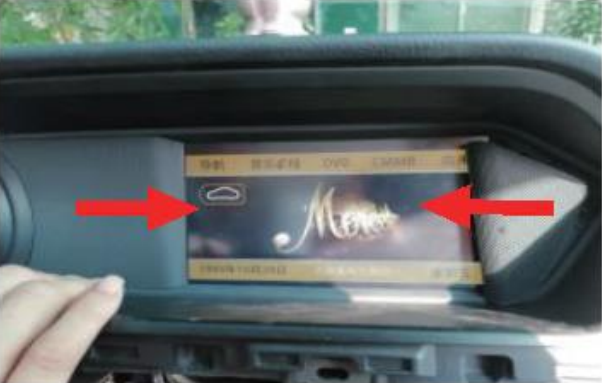

Remove the Left and Right Decorative Covers
Why are these small covers removed before the larger trim strips?
The side covers overlap the trim route around the original monitor area. Removing them first exposes the next retaining points and allows the longer decorative strips to come out without being bent around an overlapping edge.
How should the clips be handled?
Keep the trim close to its normal angle while releasing the clips. Do not rotate the piece sharply once one end comes free. Put the left and right pieces aside separately so they return to their original positions during final reassembly.
Release the Main Decorative Strip
What is the safest way to remove the longer W204 trim strip?
Begin at the exposed edge and release the fasteners progressively across the strip. Support the section that has already come loose while working on the next clip. A long trim piece should be released in stages instead of being used as a lever against the dashboard.
What should you avoid?
Do not bend the trim sharply and do not pull from the free end while another clip is still locked. Inspect the back of the strip after removal so any clip that stayed in the dashboard can be recovered before reassembly.

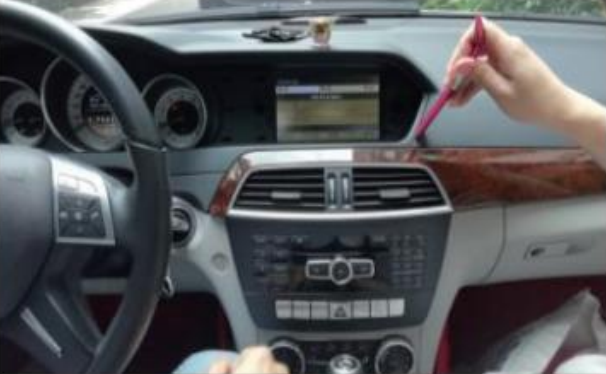

Remove the Right-Side Decorative Strip
Why is the right trim section removed separately?
The factory monitor and mounting area sit behind several overlapping trim sections. Removing the right-side piece opens the remaining access path without forcing the larger panel across a still-attached trim edge.
What should you check as it comes out?
Watch the position of each metal or plastic clip and keep the piece parallel to the dashboard as it is released. If a clip remains in the vehicle, transfer it back to the trim before the final installation rather than attempting to push the panel over a misplaced clip.

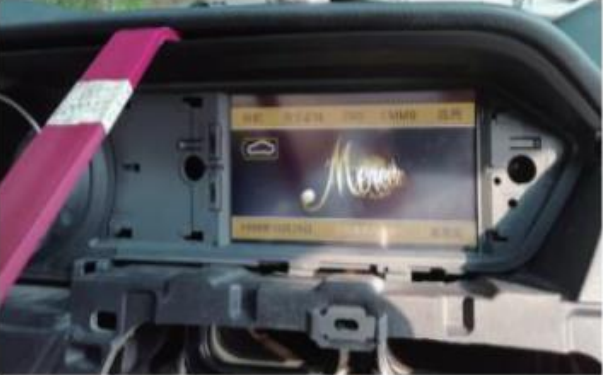

Remove the Upper Trim and Expose the Monitor Fasteners
What changes after the upper decorative strip is removed?
Removing the last upper trim section exposes the factory monitor mounting area. At this stage you should be able to see the monitor fasteners clearly without bending surrounding trim out of the way.
Why should the trim removal be completed before unscrewing the monitor?
Trying to remove the screen while trim still overlaps it can place stress on the monitor housing and dashboard. Complete the access work first so the factory unit can move straight outward after its screws are released.

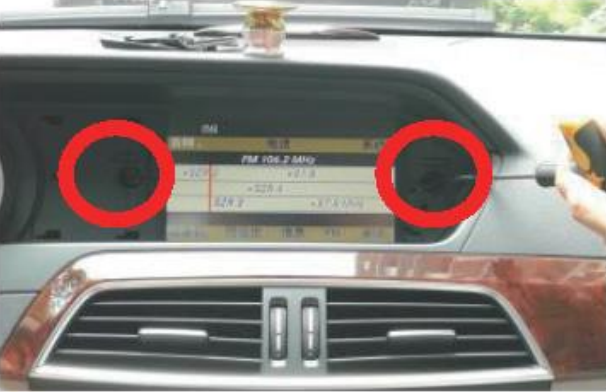

Remove the Original Monitor Fixing Screws
How should the original W204 monitor be released?
Support the monitor with one hand while removing its fixing screws. Keep the screws together because the original mounting points may be reused by the replacement bracket. Once the screws are out, move the monitor only far enough to access its wiring safely.
Should you pull the screen out immediately?
No. The rear cables still connect the factory monitor to the vehicle. Pulling hard before checking the connectors can strain the LVDS cable or connector housing. Create enough working space first, then release each connection deliberately.

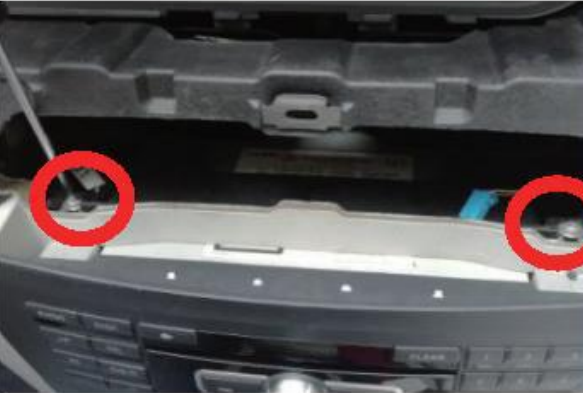

Loosen the Original NTG Host and Pull It Forward
Why does the original head unit need to come forward?
The Android screen integrates with the existing vehicle system rather than simply taking power from the old monitor connector. Access behind the original NTG host is required for the matched main harness and other vehicle-interface connections.
How far should the factory unit be removed?
Only pull it forward as far as necessary to reach the rear connectors comfortably. Support the unit so its weight does not hang from the factory wiring. Note the original connector positions before anything is disconnected.

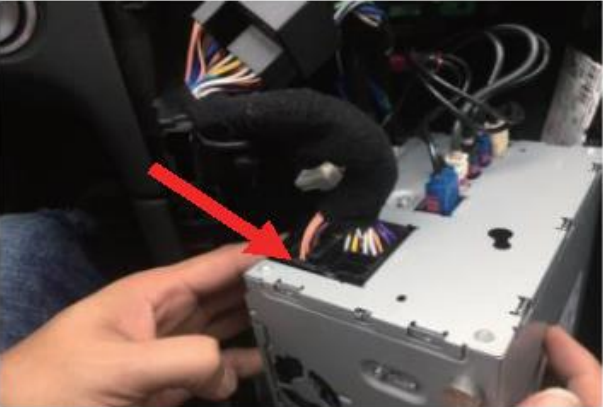

Connect the Factory Power Plug to the Matched Android Harness
How does the main power connection work?
Release the original power connector using its locking mechanism and connect it to the matched Android T-harness supplied for the order. The harness then provides the route between the factory host, vehicle interface and new Android display.
What if the connector does not fit naturally?
Stop. Do not shave a plug, cut factory wires or force a connector into the wrong socket. Check the plug orientation and supplied harness first. If the vehicle has factory fiber-optic equipment, an amplifier or previous aftermarket wiring, follow the exact route prepared for that order rather than improvising.

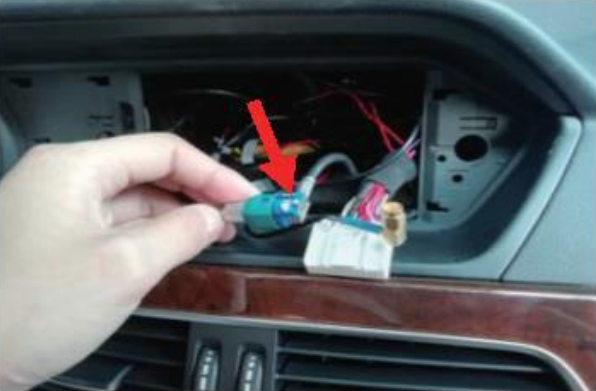

Route the Original LVDS Signal Into the Android Display System
What does the LVDS connection do?
The LVDS route carries the factory display signal needed for original-system access. In this installation route, the original monitor LVDS connection is transferred into the matching Android LVDS / adapter path supplied with the unit.
What causes a black screen or missing original menu after installation?
A partially seated LVDS connector, wrong socket or incorrect cable route is one of the first items to inspect. These connectors are keyed. Align them correctly and seat them fully; never force a connector simply because its size looks similar.

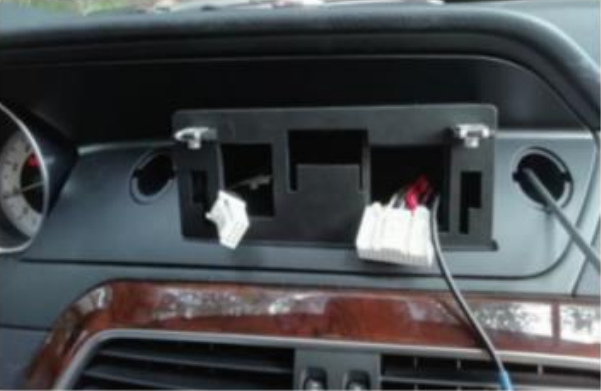

Install the New Screen Bracket and Route the Wiring
What matters most when fitting the new display stand?
Seat the bracket squarely on the original dashboard mounting points and tighten the fixing screws evenly. Before tightening everything completely, verify that the bracket is centered and that no harness sits between the bracket and dashboard surface.
Where should the extra cables go?
Route the main harness, GPS, 4G, microphone, USB, RCA and audio accessories into available factory cavities without pinching them behind the screen. Keep connectors accessible until the function test is complete. A clean cable route makes future diagnosis much easier.

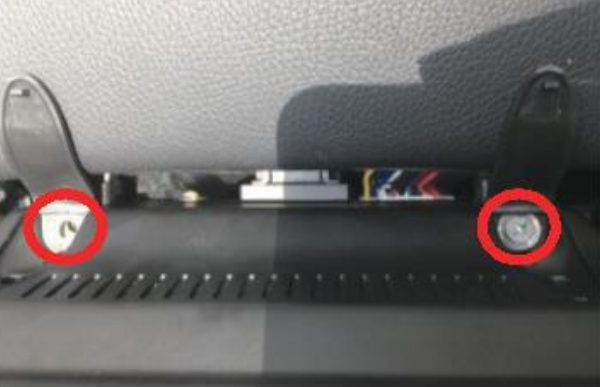

Connect and Mount the Android Monitor
Should all connections be made before the screen is tightened down?
Yes. Connect the required display, power, LVDS and accessory leads while the rear ports remain easy to see. Confirm that each plug is in its intended socket and that locking connectors are fully seated before placing the display onto the bracket.
How tightly should the display be mounted?
Tighten the screen fixing screws evenly so the housing sits square to the dashboard. Do not over-tighten small screen or trim fasteners. The goal is a stable screen with an even fit, not maximum screw torque.

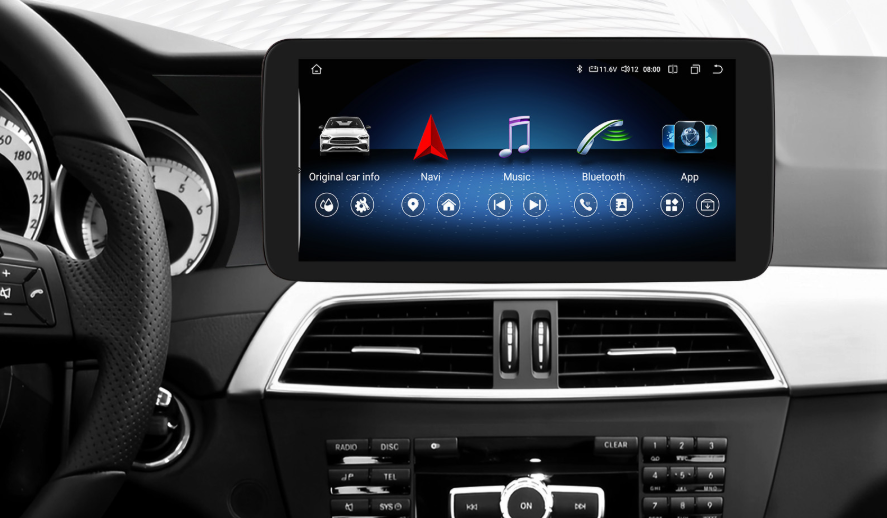

Power On and Test Every Important Function Before Reassembly
Is a successful Android boot enough to finish the installation?
No. A screen that powers on can still have an incorrect audio, LVDS, camera or vehicle-interface route. Keep the dashboard open and test the functions that depend on the factory system before replacing the trim.
What should be tested now?
Check Android startup, original Mercedes menu access, sound, steering-wheel controls, Bluetooth calling, Wireless CarPlay or Android Auto, reverse camera or parking display, GPS and any supported vehicle-interface information. Switch the car off and confirm the system also enters its normal sleep/wake cycle.
Use the Cable Map to Verify the Final Connection Route

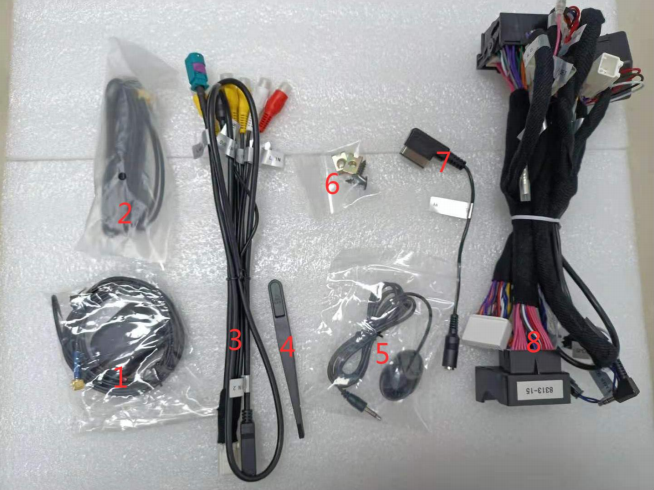

What are the main accessory connections in the W204 Android kit?
The installation set can include the main power harness together with GPS antenna, 4G antenna, RCA connections, external microphone, AMI or audio cable and mounting hardware. The exact accessories used depend on the configuration supplied for the vehicle.
Does every loose connector need to be plugged into something?
No. Some harnesses provide optional inputs for cameras, microphones, amplifiers or other accessories. Do not connect an unused plug simply because it is available. Secure unused connectors so they cannot rattle, then use the order-specific wiring route if a function still needs diagnosis.
Mercedes W204 Android Head Unit Installation: Four Connections to Recheck Before Closing the Dash
If the display powers on but something does not work, diagnose the relevant route first instead of immediately changing software settings.
Confirm the matched T-harness and factory connectors are completely locked.
Recheck the factory display-signal route if the original Mercedes interface is missing or black.
If there is no sound, confirm the AUX / AMI / USB, amplifier or fiber-optic route prepared for the order.
Steering-wheel, parking and supported vehicle information depend on the correct vehicle-interface connection and settings.
Mercedes W204 Android Head Unit Installation Final Test Checklist
Do this while the original host and wiring are still accessible. Reassembling first can turn a five-minute connector check into another complete dashboard removal.
Need the Correct Mercedes W204 Android Head Unit for This Installation?
The iKAGOO Mercedes W204 NTG4.5 Android Head Unit is the product route used for this 2011–2014 C-Class installation. Available configurations include 10.25-inch and 12.3-inch screens with Wireless Apple CarPlay, Android Auto, Bluetooth, WiFi and supported 4G options. Place the order through the product page; the paid order then receives the final engineering verification before shipment so the screen, harness and required connection route can be prepared correctly.
Mercedes W204 Android Head Unit Installation FAQ
Direct answers to the installation, year-range and factory-function questions W204 owners most often need resolved.
What years does this Mercedes W204 Android Head Unit Installation guide support?
This guide is specifically for the matching Mercedes-Benz C-Class W204 / S204 / C204 2011–2014 NTG4.5 route. It is not the installation guide for the earlier 2008–2010 NTG4.0 version.
Can I install a 12.3-inch Android screen in a 2011–2014 Mercedes W204?
Yes, the current iKAGOO W204 NTG4.5 product route offers both 10.25-inch and 12.3-inch screen configurations for the supported 2011–2014 vehicle route.
Will the original Mercedes system still be accessible?
Supported original-system access is retained through the correct power, LVDS and vehicle-interface route. Test factory-system switching before the dashboard is reassembled.
Will steering-wheel controls work after the W204 Android screen installation?
Supported controls are designed to continue working after the matched harness and vehicle interface are correctly connected and configured. Test the buttons before final reassembly.
Why does my W204 Android screen have power but no audio?
Power and audio use different paths. Check the AUX / AMI / USB audio route and any factory amplifier or fiber-optic equipment prepared for your specific installation before changing unrelated settings.
Do I need to cut factory Mercedes wiring?
The intended installation uses the matched plug-in harness without intentionally cutting supported factory wiring. If a connector does not match, stop rather than modifying the vehicle harness.
Should I assemble all the trim immediately after the screen turns on?
No. Complete the audio, original-system, steering-wheel, camera, phone-connectivity and sleep/wake tests first. Only rebuild the dashboard once the important functions are stable.
Where can I get help if an installation function is not working?
Use your iKAGOO order number together with clear photos or video of the connector position and exact symptom. The order remains the reference for installation guidance, diagnosis and the applicable after-sales route.
Mercedes W204 Android Head Unit Installation, Product and Support Resources
Use these pages when you need the product, an earlier W204 version, installation support or current iKAGOO order policies.
Technical scope: Mercedes-Benz C-Class W204 / S204 / C204, 2011–2014, NTG4.5 Android head-unit route.
Visual procedure: 14 installation reference images covering dashboard access, original host removal, main harness, LVDS, display mounting and final cable identification.
iKAGOO installation principle: use the matched connection route, avoid intentional cutting of supported factory wiring and complete function testing before final reassembly.
Last reviewed: September 2026.
