Original price was: $785.00.$418.00Current price is: $418.00.
Select DDP Shipping at checkout. iKAGOO covers the applicable import duties and taxes included in your DDP shipping service. No separate payment of these covered charges at delivery. Standard Shipping does not include import taxes.
Final shipping is confirmed from your delivery address at checkout.
iKAGOO reviews fitment and provides defined compatibility protection, a 1-year hardware warranty, 3-year software support and 5-year parts support for eligible products.
Our goal is to get your order right before it leaves us. We verify compatibility, prepare the correct setup and contact you only if something needs confirmation.

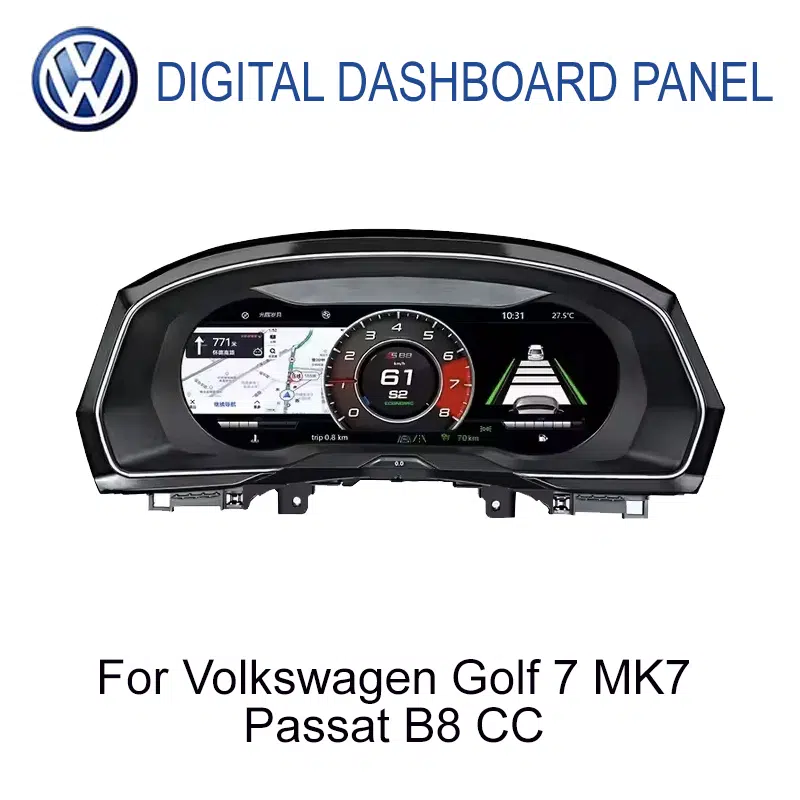

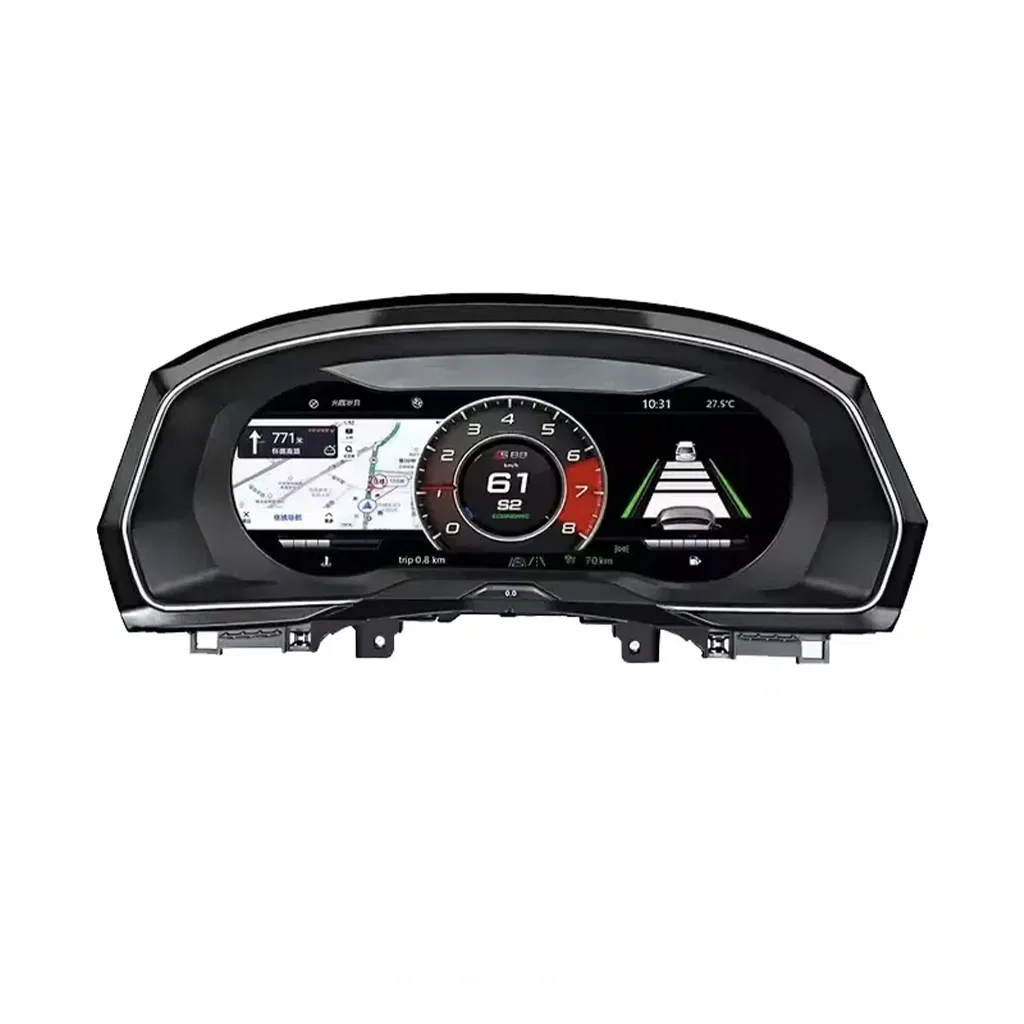

The VW Golf Mk7 Digital Cluster replaces the analog-style driver view with a 12.3-inch, 1920×720 IPS LCD. Enjoy clearer driving information, selectable display themes and an OEM-style fit with the correct Golf 7 vehicle-specific kit.
Instead of adding a separate screen somewhere in the cabin, this retrofit modernizes the instrument panel directly behind your steering wheel. A wider digital canvas places the important driving information in the driver's usual sight line while keeping the familiar Golf dashboard architecture.
If your only goal is phone connectivity, a head-unit upgrade serves a different purpose. This product upgrades the instrument cluster itself. Explore the virtual cockpit retrofit guide.
The 12.3-inch LCD changes the driver-facing instrument area, not the central multimedia screen. It makes the cabin feel more current while leaving the instrument display in its original dashboard position, rather than adding an aftermarket screen above the trim.
The correct frame and cluster variant are prepared around the vehicle's original instrument layout.
Supported multifunction steering-wheel inputs continue to control compatible cluster pages and menus after the original electronics and matched interface are installed correctly. You keep the control layout you already know rather than learning an unrelated universal-display interface.
Different dial layouts change how the driver's main information is presented. Choose a clean daily-use layout or a more visual theme according to the installed software version and available cluster menus.
The matched cluster is designed to display supported speed, RPM, gear, fuel, trip and warning information. The original electronics transfer and correct interface route matter because this information comes from the vehicle, not an independent simulated dashboard.
A map-focused cluster view may be available with a compatible paired source and confirmed navigation or screen-input route. It is not a promise that the standalone Linux cluster runs navigation apps by itself.
The Linux cluster is a dedicated instrument display, not an Android head unit. CarPlay, Android Auto, camera and 360-view display depend on the compatible source, applicable video input hardware and the specific ordered configuration. When the right route is available, selected information can be presented closer to your normal driving sight line.
Tell iKAGOO which head unit and display inputs your Golf currently uses if you require map or phone-projection display.
It is intended for supported analog-cluster VW Golf 7 / Golf Mk7 / Mk7.5 vehicles, with the exact version confirmed against your dashboard and original instrument cluster. The current product listing covers 2013–2020 market years; the published standard installation guide specifically documents 2014–2020. A 2013 vehicle needs individual verification rather than an automatic compatibility promise.
Accurate version preparation: Provide your model, model year, original cluster photo, dashboard photo, steering-wheel photo and LHD/RHD position. Connector photos or original head-unit details may also be requested for unusual equipment or navigation input. See iKAGOO's compatibility and installation process.
Supported original vehicle information is retained through the correct cluster conversion route, which includes transferring required components from the original analog instrument cluster. For the documented Golf Mk7 installation, this includes the relevant internal board path and the original buzzer or speaker; it is not an empty-housing swap. Original mileage and factory data must not be altered manually.
Specific displays, steering-wheel menu behavior, camera routes and vehicle status details vary by original equipment and confirmed cluster version. Read the factory-function retention standard.
The documented Golf Mk7 analog-cluster conversion uses careful trim removal, original-cluster disassembly, required internal-component transfer, a matched wiring connection and a complete first-boot test. The standard supported route does not require factory wire cutting or ECU flashing; non-standard vehicle configurations may need individual setup advice. An experienced DIY installer or automotive-electronics professional is appropriate.
Check the analog cluster, correct version, dashboard and matched harness.
Release the trim carefully and move the original unit to a clean bench.
Move required original board components and retain the buzzer/speaker.
Install the upgraded assembly and reconnect the vehicle-specific wiring.
Check speed, fuel, warnings, wheel buttons and display menus before final trim closure.
For the full illustrated board-transfer sequence and control setup, use the Golf Mk7 / Mk7.5 digital cluster installation guide. If any connector or function does not match, share clear photos or a short test video with iKAGOO before completing reassembly.
Linux-based cluster software is built for the driving display; it is not a separate Android tablet behind the steering wheel.
The correct harness and interface help preserve supported factory signals without intentional cutting of standard factory wiring.
Menus, display source configuration and applicable firmware or settings guidance can be handled against the confirmed version after installation.
For an owner comparing repair, a basic phone-connection module and a complete cockpit change, the iKAGOO upgrade decision guide explains what each route changes.
| Product type | VW Golf Mk7 digital instrument cluster / LCD cockpit retrofit |
|---|---|

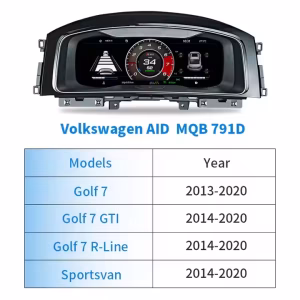

| Primary vehicles | Volkswagen Golf 7, Golf Mk7 and Golf Mk7.5 with a confirmed supported analog-cluster configuration |
| Listed model years | 2013–2020 by product listing; the current published standard installation route covers 2014–2020. Confirm 2013 and market-specific variants separately. |

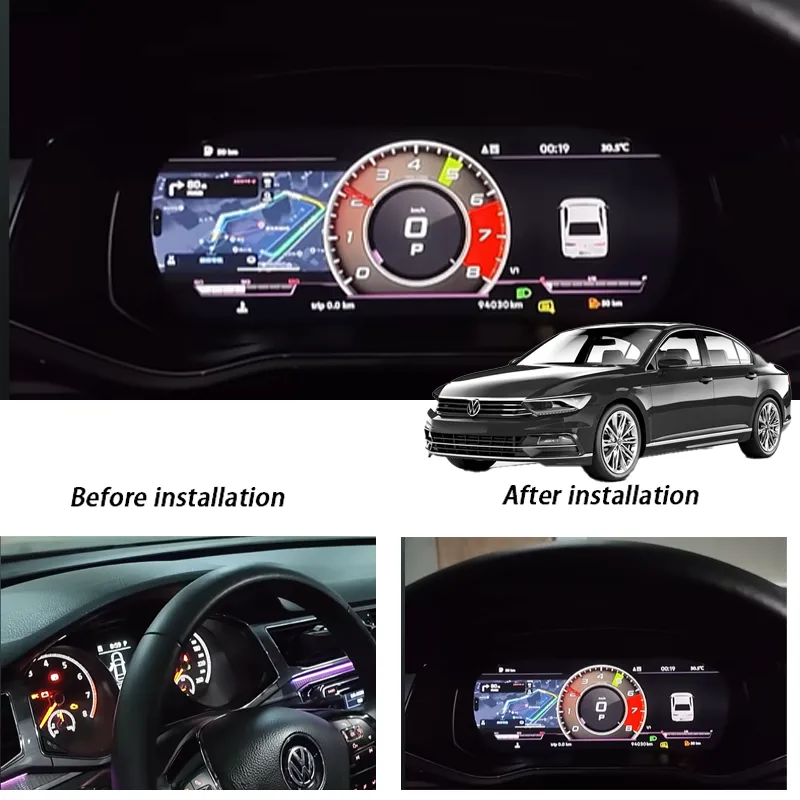

| Other enquiries | Passat B8, Arteon and listed CC applications require individual frame, dashboard and connector confirmation; no universal cross-fit guarantee. |
| Display | 12.3-inch IPS LCD |
| Resolution | 1920×720 pixels |
| Operating system | Linux; dedicated instrument-cluster software |
| Startup | Fast-start behavior designed for instrument-display use; no fixed startup-time promise. |
| Available layouts | Selectable digital themes and supported menus; available choices depend on installed software version. |
| Original controls | Supported multifunction steering-wheel control retention after correct matching and configuration |
| Vehicle information | Supported speed, RPM, gear, fuel, mileage, trip and warning indicators; final function behavior follows original vehicle equipment. |
| Original electronics | Required original cluster internal components and factory buzzer/speaker are transferred for the documented Golf Mk7 analog-conversion route. |
| Wiring | Matched harness and interface for supported cars; no intentional factory wire cutting in the standard route. |
| Map / CarPlay / camera input | Only with the confirmed paired system and compatible navigation, HDMI or screen-projection route; not standalone Linux apps. |
| Installation level | iKAGOO Level 3 — Advanced DIY / professional automotive-electronics installer |
| Steering position | LHD/RHD version to be confirmed using original dashboard and cluster photos. |
| SKU | YB-116 |
| Recommended buyer | Golf Mk7 owner seeking an OEM-style digital cockpit while retaining supported original driving data and controls. |
The difference is not only the display specification. iKAGOO links the product order to your exact vehicle version, correct frame and harness, original-electronics transfer route and post-installation support.
Model year, existing cluster, dashboard, steering position and special equipment can be checked before the correct variant is prepared.
Prepared cluster, harness and interface follow the order; actual visible part photos can be requested before packing.
Send order-linked pictures and video for wiring, settings or firmware-route help; complicated cases can be escalated for technical review.
Your order reference also links packing, tracked shipment, applicable cable or hardware resolutions and later support. The current site's hardware warranty policy and returns policy apply; no unconfirmed multiyear support promise is implied.
It fits supported analog-cluster Golf Mk7/Mk7.5 configurations after version confirmation. iKAGOO checks the year, dashboard, steering position, original cluster and connectors; 2013 cars require individual review because the published standard guide covers 2014–2020.
Golf Mk7 is the primary supported product direction; Passat B8 and Arteon require separate approval. The listed CC route also depends on its actual frame, dash and connector architecture. MQB family naming alone does not guarantee identical hardware.
Yes, supported multifunction controls are retained with the correct vehicle-specific kit. Test page switching, menu selection and original button responses before reassembling all surrounding trim.
Yes, supported speed, RPM, gear, fuel, trip and warning information remains available after correct installation. Required original cluster electronics and the factory buzzer/speaker must be transferred for the documented conversion.
Only with a compatible paired source and the confirmed screen-input configuration. The Linux cluster is not an independent Android or CarPlay head unit; map, Android Auto, camera and 360-view display routes vary by hardware and connected system.
No, the documented standard installation uses a matched harness without intentional factory wire cutting. Previously modified wiring or unusual connectors need review before connecting the supplied kit.
Yes, for experienced DIY installers; iKAGOO classifies the work as Level 3 Advanced DIY. It involves trim removal, original-cluster opening, internal board transfer, correct connection and thorough function testing. A professional installer is also suitable.
Not in the documented standard analog-cluster installation route. It does require the original internal-component transfer and normal setup; non-standard factory equipment or previous modifications may need additional technical guidance.
Send your model and year, dashboard, original cluster and steering-wheel photos, and LHD/RHD position. Add connector or current head-unit photos if requested, especially when ordering navigation or screen-input features.
iKAGOO supplies a vehicle-matched cluster route with order-linked installation support. The key benefit is having a clear frame, harness, original-electronics and version-confirmation path rather than relying on a similar-looking listing photo.
Yes, request them before the order is packed. iKAGOO can show available visible parts, prepared wiring or accessories for the confirmed order configuration.
Contact iKAGOO with the order number, clear connector photos and a short function-test video. Support can review the harness, settings and cluster version and escalate complex cases for technical assessment.
The documented conversion retains the required original cluster electronics rather than entering a replacement mileage manually. The original board and associated components must be transferred correctly, and the displayed reading should be checked during first-boot testing.
Choose the YB-116 version for a genuinely modern driver display, selectable themes and supported factory information, with original-cluster electronics retained through the correct conversion. iKAGOO reviews your exact Golf configuration before preparing the matched kit.
You must be logged in to post a review.
Clear information about vehicle compatibility, order preparation, international delivery, warranty, returns and after-sales support.
Vehicle-specific electronics require the correct version, wiring and configuration. Our process is designed to reduce avoidable compatibility and installation problems.
Vehicle model, year, original system and relevant configuration information may be reviewed before purchase to reduce the risk of selecting the wrong version.
After payment, submit the required vehicle information and relevant photos through the secure form linked on the order confirmation page, confirmation email or My Account. We review these details before preparing the correct version and components for dispatch.
Our goal is to get your order right before it leaves us. Please submit the required vehicle details and photos after payment. We review them before dispatch and contact you if clarification is needed.
A practical summary of the main terms that apply to vehicle-specific iKAGOO orders.
Most iKAGOO orders are dispatched from our fulfillment location in China after the product configuration and vehicle information have been checked.
Normal order processing is approximately 1–3 business days. Estimated delivery after dispatch is generally:
Customs clearance, holidays, weather, carrier delays and remote-area delivery may affect these estimates.
Choose DDP Shipping at checkout: iKAGOO covers applicable import duties and taxes included in the selected DDP service. No additional payment of those covered charges is due on delivery.
Standard Shipping: Import duties, VAT and customs fees are not included and may be collected separately.
DDP Destinations — Subject to Checkout Availability
USA: 48 contiguous states.
European Union (27): Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden.
Additional destinations (14): Canada, United Kingdom, Australia, United Arab Emirates, Singapore, Malaysia, Thailand, Vietnam, Indonesia, Philippines, Brunei, Myanmar, Cambodia, Laos.
Available shipping methods and costs are shown after entering your delivery address. Remote-area fees may apply.
Express or expedited shipping may be available for selected products and destinations. Availability, carrier and any additional cost are confirmed before shipment.
Depending on the route and product type, iKAGOO may use DHL, FedEx, UPS, EMS, 4PX or another tracked logistics provider.
After dispatch, the tracking number or tracking link is normally sent to the email address used for the order. Tracking updates may take several business days to appear during international carrier transfers.
Return eligibility depends on the reason for return, product condition, installation status, supporting evidence and whether the return has been approved by iKAGOO.
For an approved non-defective return, the product must normally remain unused, uninstalled, complete and suitable for resale. The customer is generally responsible for approved return shipping costs.
Original shipping, DDP, VAT, customs duties and other logistics costs are generally non-refundable unless required by law or otherwise confirmed by iKAGOO.
Do not send a product back before receiving an approved return address and return instructions from iKAGOO.
Additional protection may apply when iKAGOO reviewed the vehicle compatibility, the customer supplied accurate vehicle information and reasonable installation and diagnostic steps have been completed.
If iKAGOO confirms that no reasonable technical solution is available and the issue is reported within 7 calendar days after delivery, the customer may be eligible for a refund of the product price without being required to return the product.
Original shipping, DDP, VAT, customs duties and other third-party charges are not included in this product-price refund.
Eligible products include a 12-month limited hardware warranty covering verified manufacturing defects and eligible hardware failures under normal use.
Depending on the verified issue, support may include remote diagnosis, configuration assistance, replacement parts, repair, replacement, partial refund or full refund.
Inspection or third-party examination does not automatically cancel the entire warranty. However, damage caused by unauthorized repair, incorrect modification, broken circuits, improper reassembly, incorrect wiring, impact, water ingress or misuse is not normally covered.
Contact iKAGOO before dismantling, modifying or repairing the product so the correct diagnostic procedure can be provided.
Contact iKAGOO within 7 calendar days after delivery and keep the original packaging, shipping label, accessories and product.
Please provide clear photos or video showing:
After verification, iKAGOO may arrange a missing-part shipment, replacement, repair, refund or another reasonable solution.
Contact iKAGOO as soon as possible and before installation. For address, vehicle configuration or product changes, contact us preferably within 12 hours after placing the order.
An exchange or return may be approved when an incorrectly selected product remains unused, uninstalled, complete and suitable for resale. Customers are normally responsible for relevant shipping costs and price differences.
Vehicle-specific products may enter procurement, programming, testing or configuration shortly after payment. Once preparation or shipment has started, cancellation may no longer be possible, or reasonable costs already incurred may be deducted.
Package contents vary by product, vehicle model, factory system and selected configuration.
Depending on the product, the package may include the main device, vehicle-specific wiring harnesses, CANBUS interface, adapters, USB cables, antennas, microphones, mounting hardware or other required installation accessories.
Refer to the relevant product photos, specifications and order confirmation for the exact contents of your order.
You can contact iKAGOO through the website contact form, WhatsApp or other available support channels. Typical response time is within 24 business hours.
For faster technical diagnosis, include your order number, vehicle model and year, relevant factory-system photos, product photos and a clear video showing the issue.
Payments are processed through the secure payment methods displayed during checkout.
Available card, wallet and installment options may vary by country, currency, payment provider and customer eligibility.
Installment services, including options offered by PayPal or another payment provider, remain subject to that provider's regional availability and approval requirements.
This section is a simplified customer guide. The complete published policy pages, order confirmation and applicable consumer law take priority if any wording differs.
Original price was: $785.00.$418.00Current price is: $418.00.
Final shipping is confirmed from your delivery address at checkout.
James.Parker –
Installed the Ikagoo digital instrument cluster in my 2015 Golf 7. The installation was straightforward, and the display looks modern. The wireless CarPlay integration works seamlessly, and the customizable themes add a personal touch. Overall, a worthwhile upgrade.
