Porsche Cayenne 958 Digital Cluster Installation Guide | 38 Real Photos
This Porsche Cayenne 958 Digital Cluster Installation Guide follows the real retrofit process from factory cluster removal to original-board transfer, wiring, configuration and final verification. The objective is to show what the work actually involves before you order or begin disassembly.
Porsche Cayenne 2011–2017 Digital Cluster
The tutorial below covers this vehicle-specific Cayenne 958 digital instrument cluster route. Vehicle information is reviewed before the final configuration is released for shipment.
Can You Install a Digital Cluster on a Porsche Cayenne 958 Yourself?
Yes, if you already have experience with vehicle trim and electronic connectors. This is not a basic display swap: the original instrument cluster is removed and opened, original electronics are retained, wiring is connected and the vehicle is tested again before final dashboard reassembly.
The physical trim removal is manageable for an experienced DIY owner. The more important part begins after the original instrument cluster comes out. Two original electronic boards remain part of the retrofit, so the factory cluster should be treated as a donor assembly, not as a part to throw away.
Keep screws and connectors organised, protect visible Porsche trim surfaces and work on a clean surface once the cluster is open. If handling exposed automotive circuit boards is outside your experience, an automotive electronics installer is a better choice.
These are iKAGOO product-route evaluation scores. Each score links to the published methodology behind that dimension.
Is This Installation Guide Compatible With Your Porsche Cayenne?
This installation reference is matched to the Porsche Cayenne 958 for model years 2011–2017. Model year alone is not the final compatibility decision.
Before shipment, check the original instrument cluster, dashboard layout, LHD/RHD configuration, market, language and required mph/km/h units. A clear photo of the original cluster is particularly useful because vehicles from the same year can still differ.
Preliminary compatibility can be reviewed before payment. After the order is placed, the final vehicle configuration is checked again before preparation and shipment.
How Do You Remove and Install a Digital Cluster on a Porsche Cayenne 958?
The physical work is best understood as a sequence: expose the cluster, remove the factory unit, preserve its electronics, integrate the new hardware, organise the wiring and test everything before the trim goes back on.
What Should the Original Cayenne Dashboard Look Like Before You Start?
Record the original dashboard condition before disassembly. This gives you a useful reference when restoring the surrounding trim after installation.

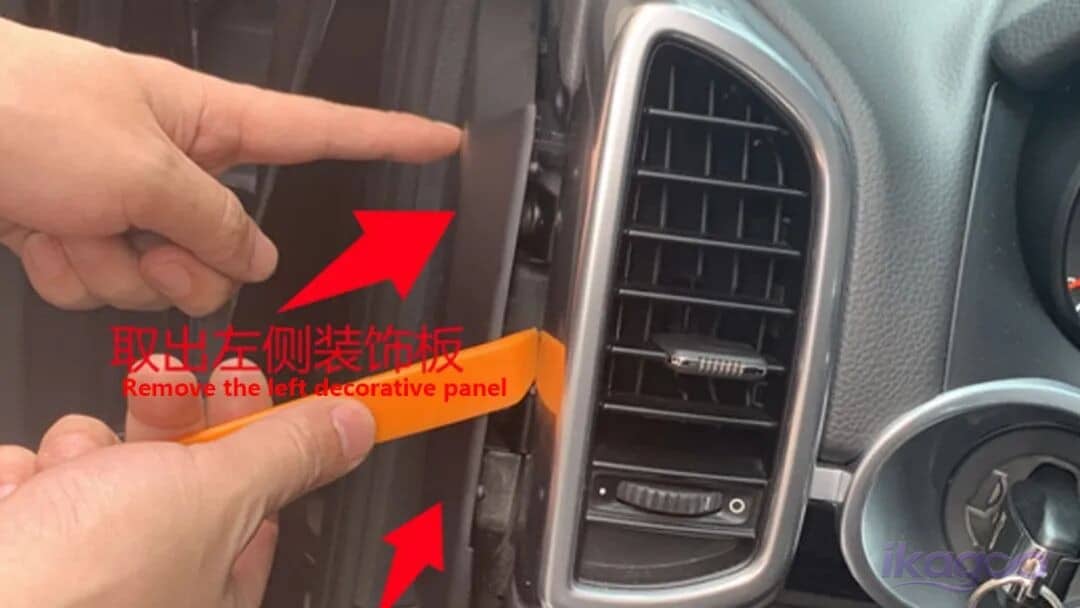

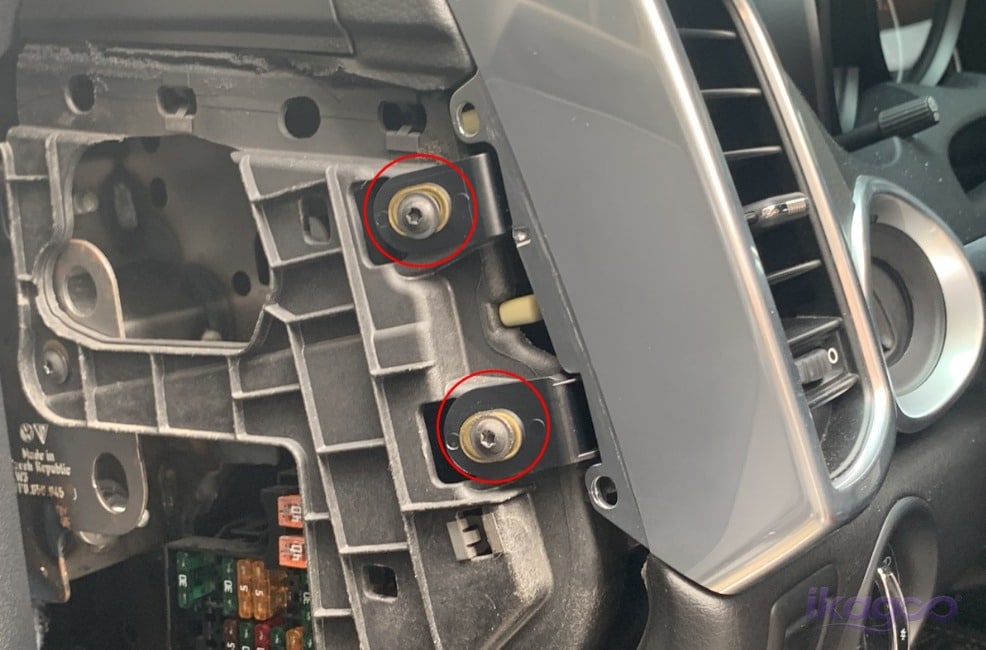

How Do You Start Removing the Left Dashboard Trim?
Release the left decorative panel progressively, then remove the exposed factory screw. If the trim resists, recheck the clip and screw positions rather than simply increasing force.

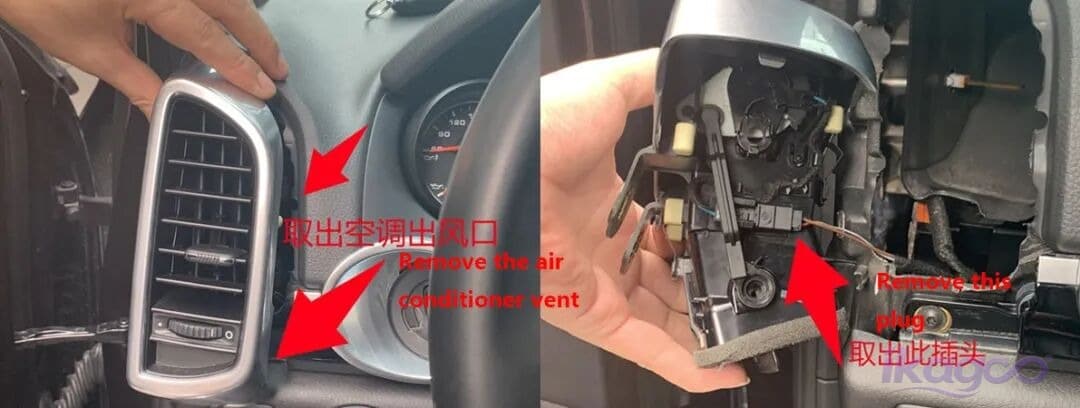

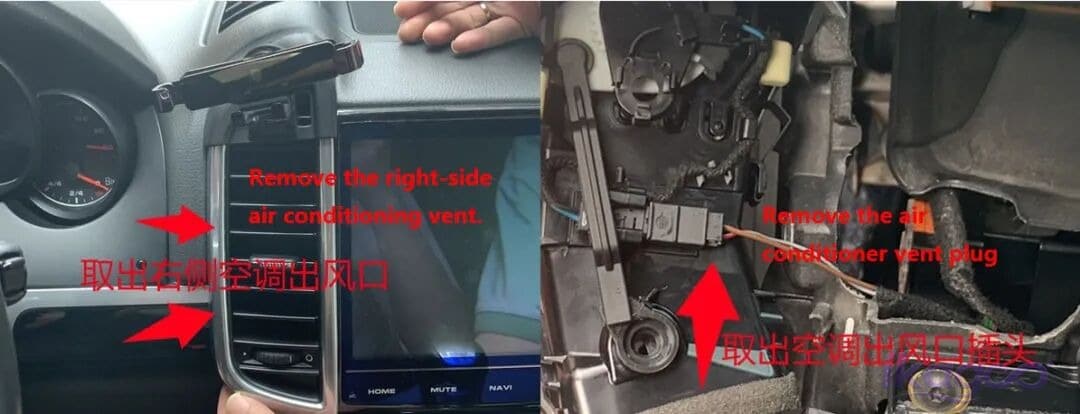

How Do You Remove the Left and Right Cayenne Air Vents?
Remove each vent carefully and disconnect the electrical plug once there is enough access behind it. Support the vent rather than allowing it to hang from its wiring.

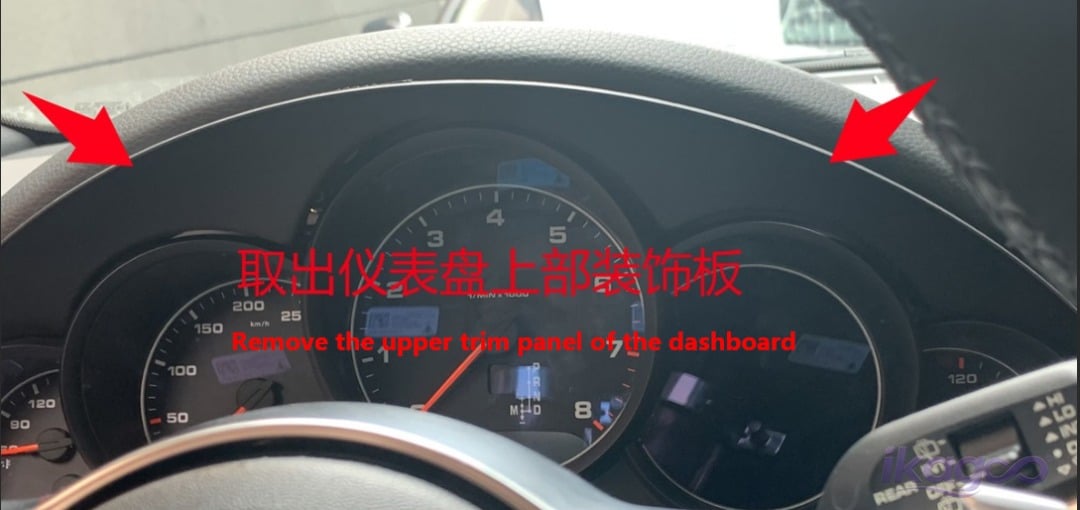

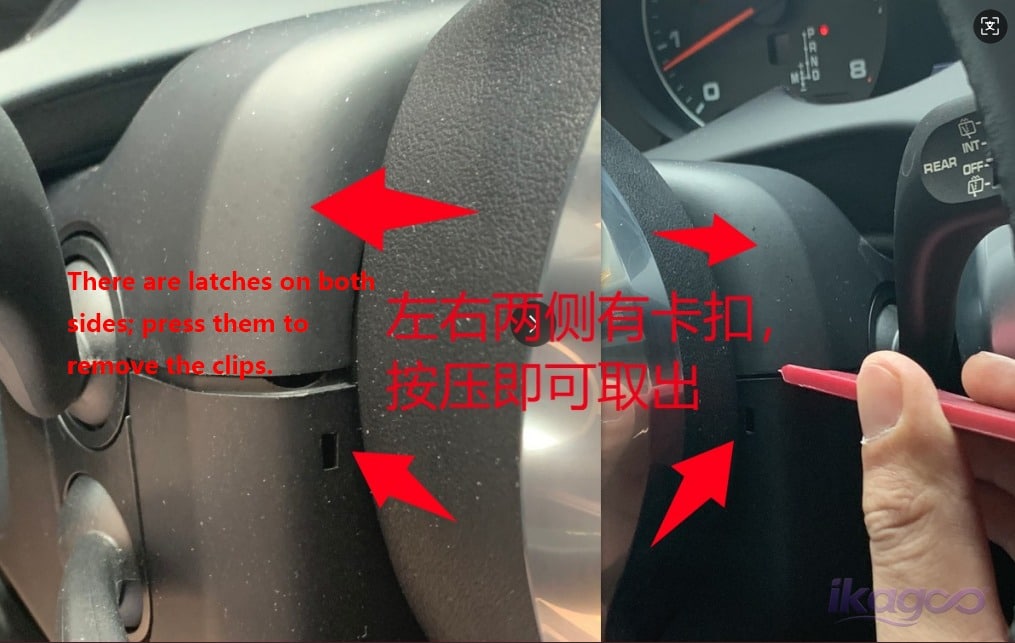

How Do You Release the Upper Cluster Trim and Steering-Column Cover?
The upper trim uses clips. Apply controlled outward pressure near the attachment points. The steering-column cover is released by pressing its side clips inward.

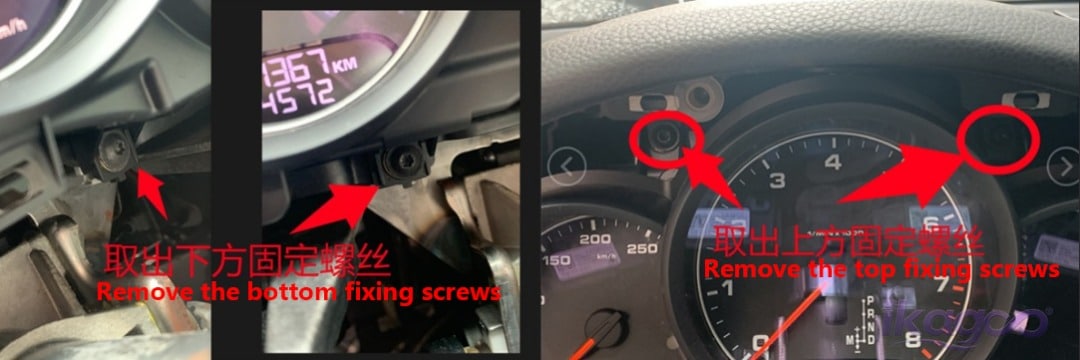

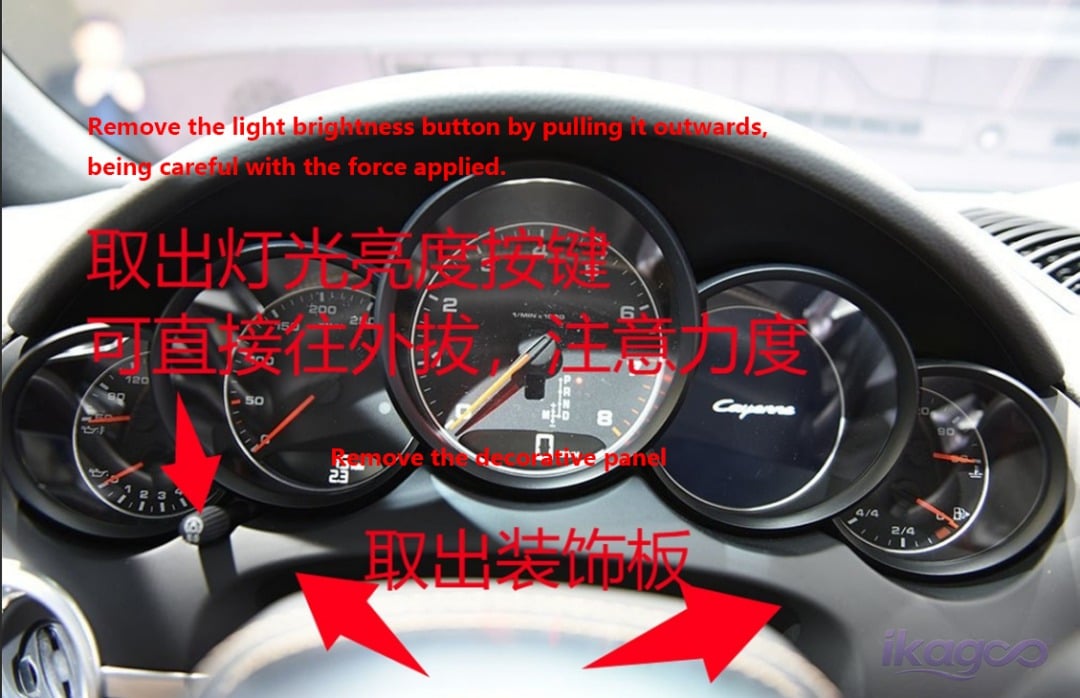

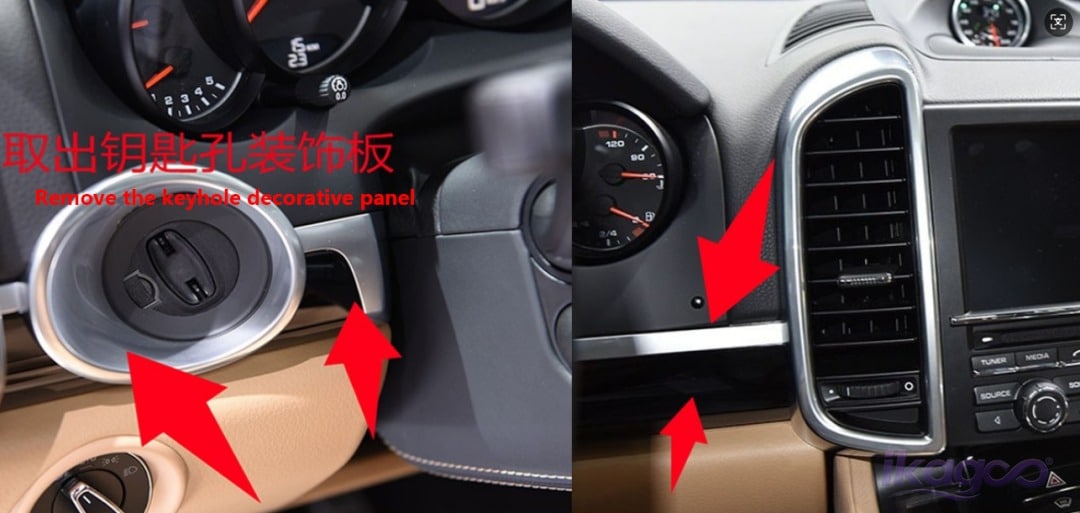

Which Lower Dashboard Pieces Need to Be Removed?
Remove the left key-area trim and the corresponding right-side panel, then release the lower cluster trim and brightness-control plastic carefully.

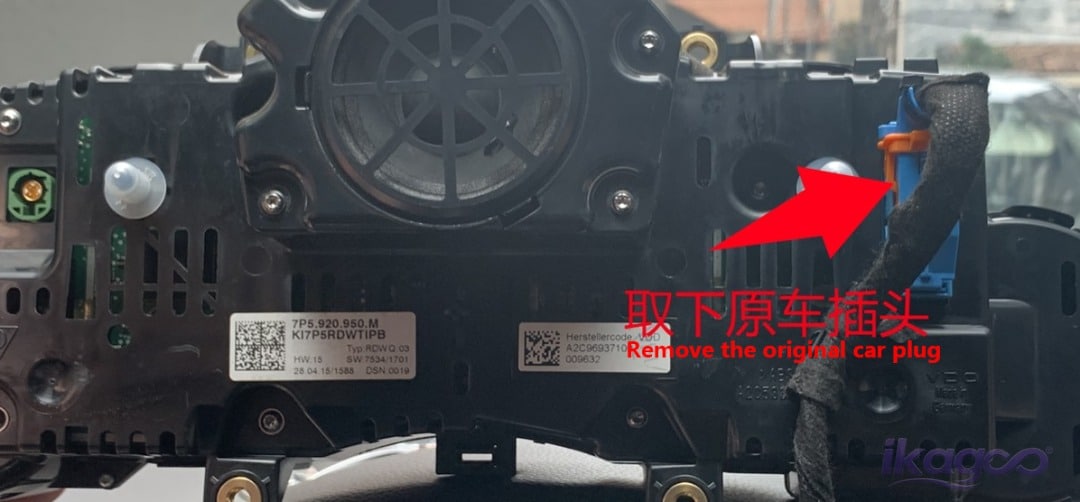

How Do You Release and Disconnect the Original Instrument Cluster?
Remove all four cluster retaining screws. Bring the cluster forward only far enough to access the factory connector, then support the assembly while disconnecting it.

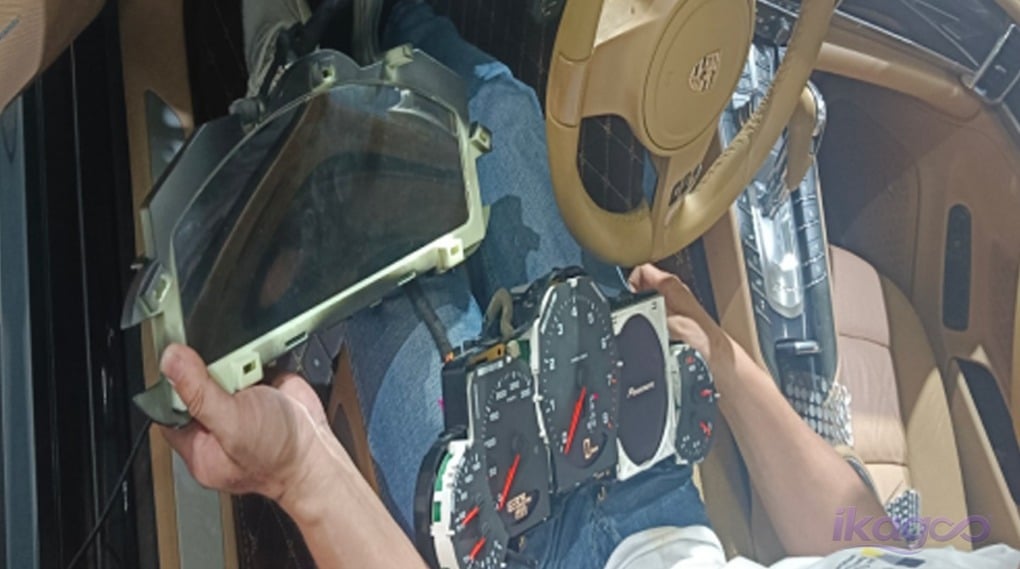

Do You Need to Keep the Original Porsche Cayenne Cluster Electronics?
Yes. Two original electronic boards are retained in this installation. The factory cluster should not be discarded after removal.
This is the key technical difference between this retrofit and a generic display replacement. The original Porsche cluster contributes electronic components to the final installation, so opening the factory assembly is a preservation step.
Keep the boards on a clean work surface, protect them from loose metal hardware and note connector positions before anything is disconnected.
Do not dispose of the original instrument cluster until the replacement unit is installed, configured and fully verified.
Why Should You Test the New Cluster Before Final Installation?
Perform the synchronization test before the dashboard is rebuilt. If a connection or communication issue exists, you still have direct access to the cluster and original electronics.

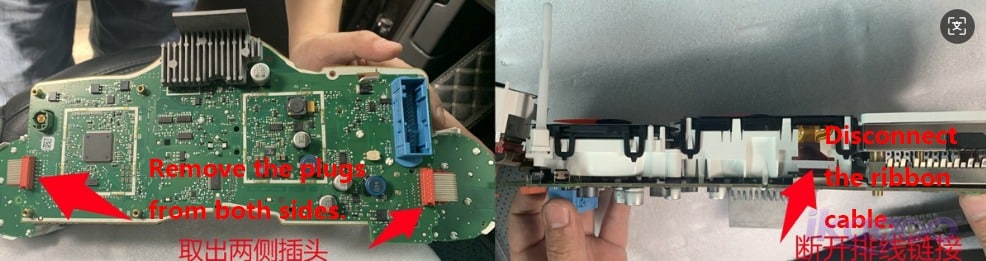

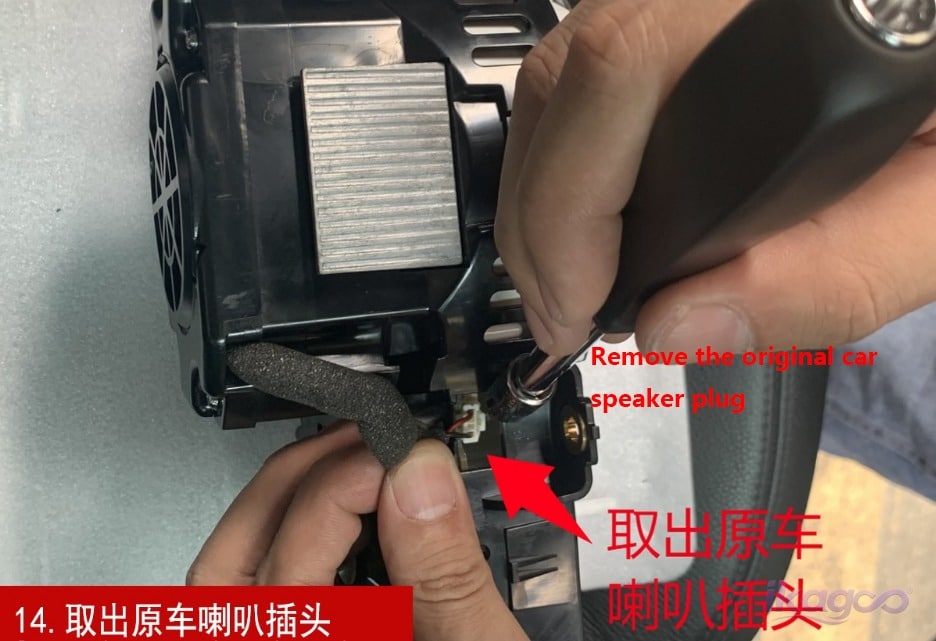

Which Factory Cluster Connectors Need to Be Disconnected?
Disconnect the original horn/speaker connection and the required motherboard connector by holding the connector bodies rather than pulling on the wires.

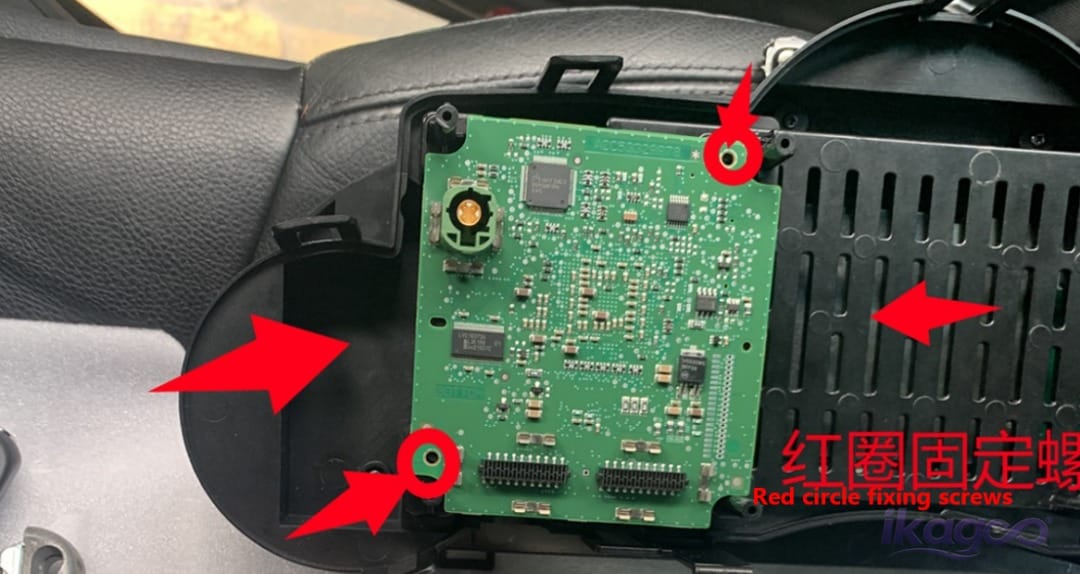

How Is the Original Circuit Board Mounted on the New Cluster?
Align the retained board with the prepared mounting position, confirm that it sits flat and only then tighten the mounting screws.

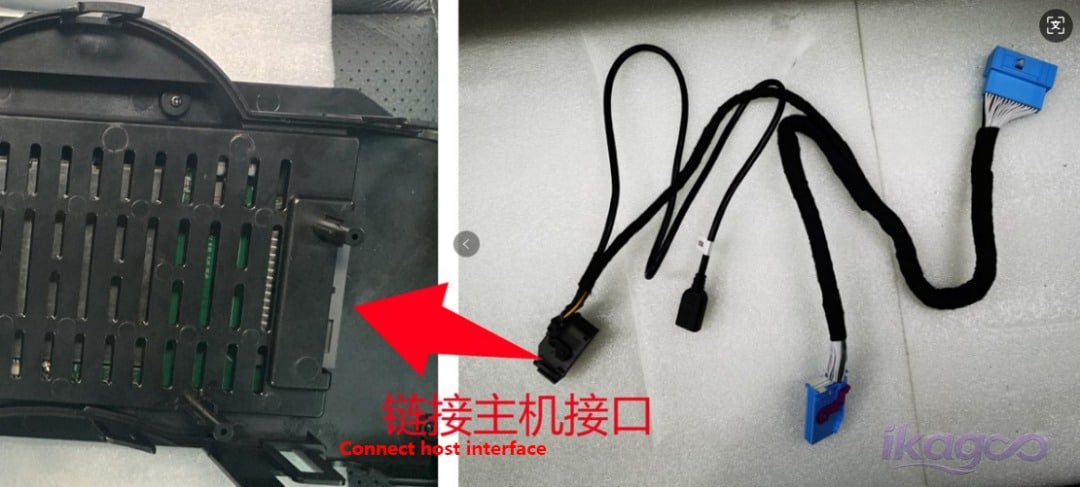

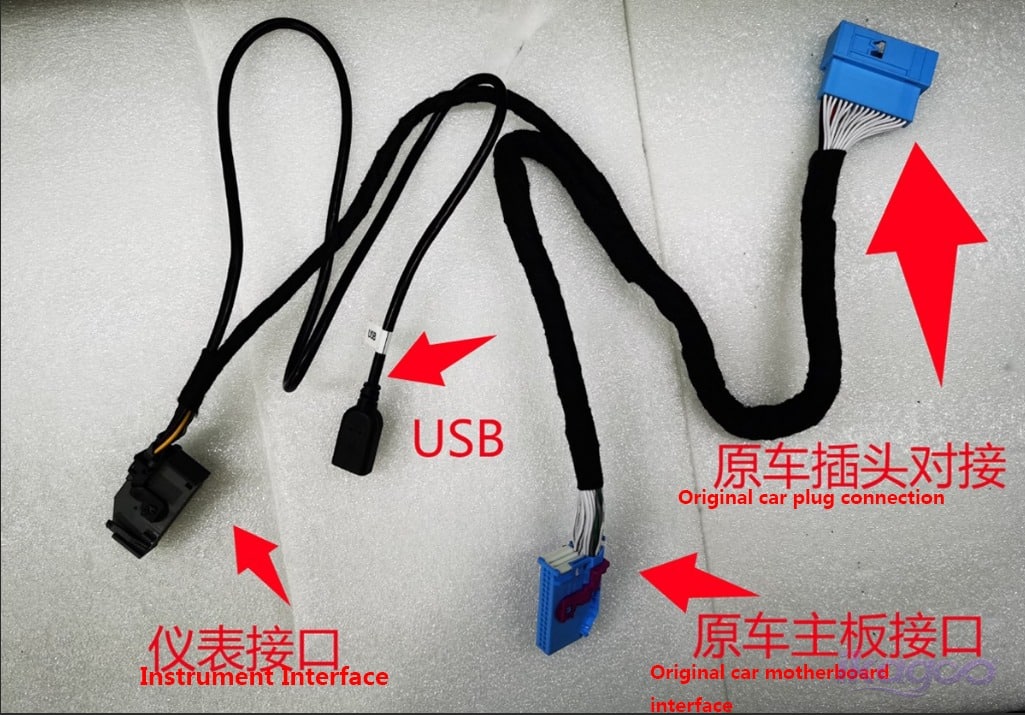

How Do You Identify the Digital Cluster Wiring?
Match every connector to the documented interface and never force a keyed plug that does not seat naturally.

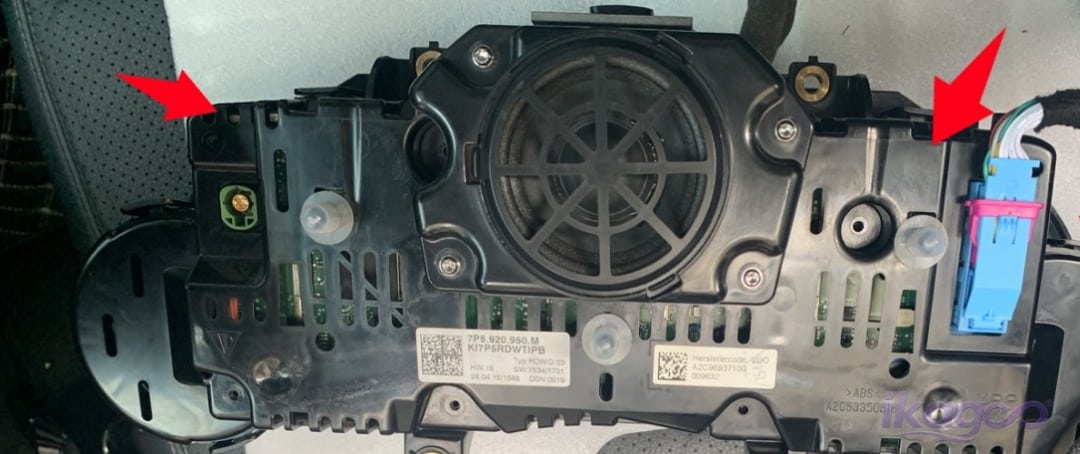

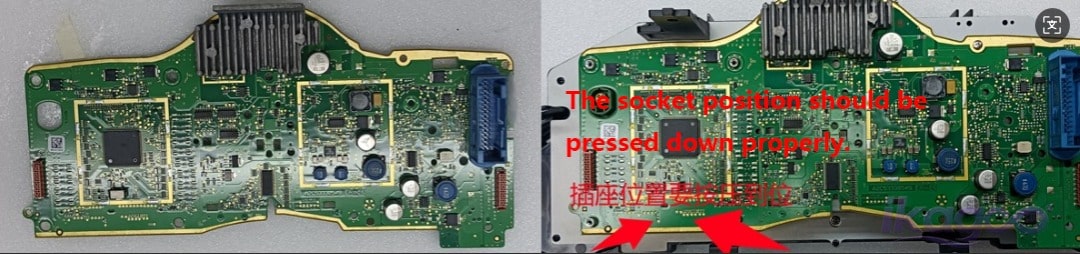

How Do You Connect Power and Reinstall the Main Original Board?
Connect the cluster power interface first. Then position the retained main board on the rear of the replacement assembly and verify that no cable is trapped underneath.

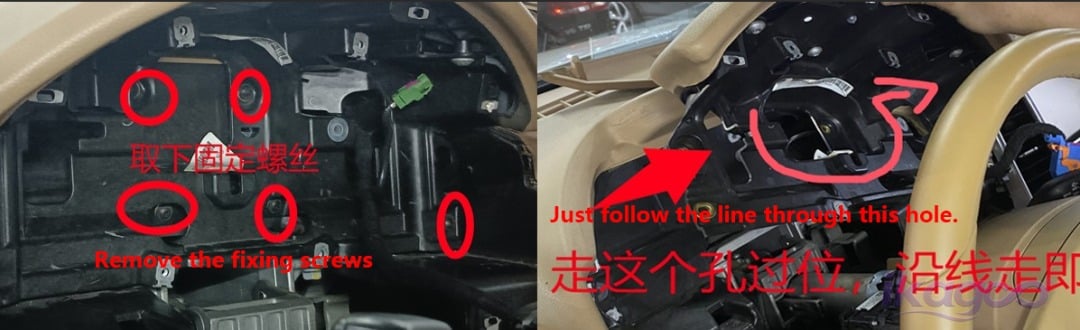

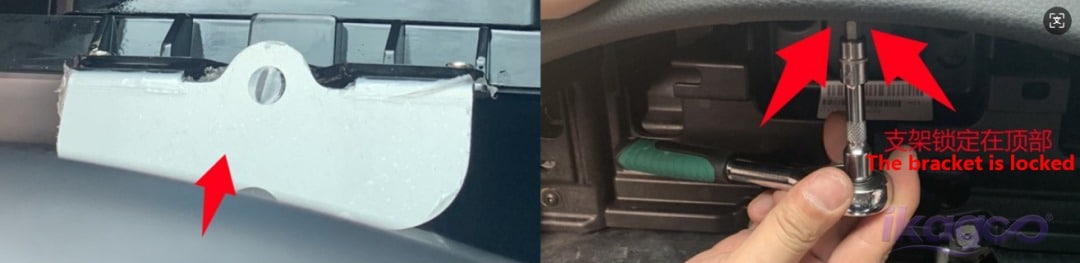

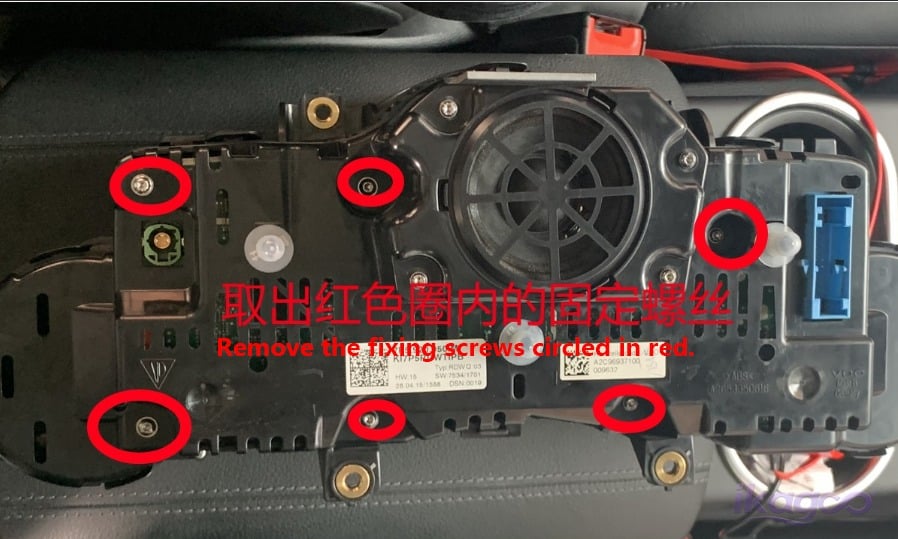

Which Original Rear Parts and Mounting Hardware Are Reused?
Transfer the documented rear plastic component, reconnect the horn/speaker lead and secure the required mounting hardware before the cluster returns to the vehicle.

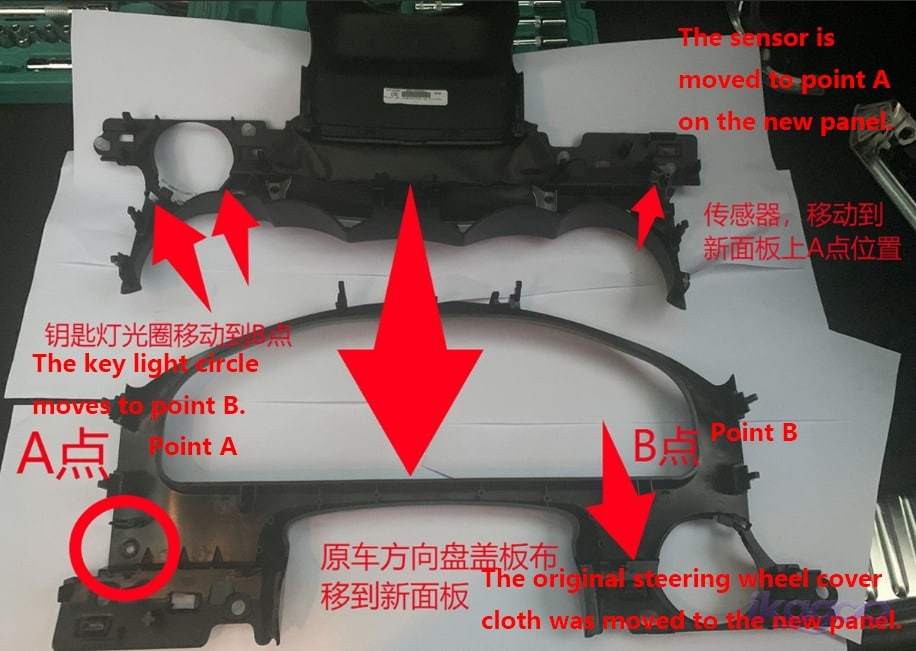

How Should the Harness and Original Trim Components Be Reinstalled?
Route the harness so no cable is pinched when the cluster is pushed into position. Transfer the documented trim-mounted light and sensor components before final reassembly.
Send a clear original-cluster photo before ordering so the visible configuration can be checked before the final pre-shipment review.

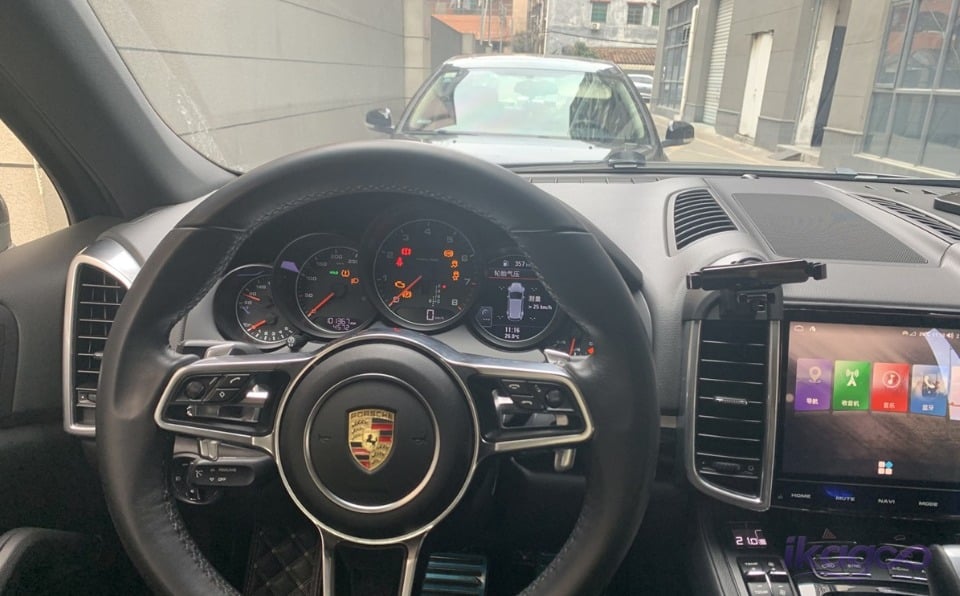

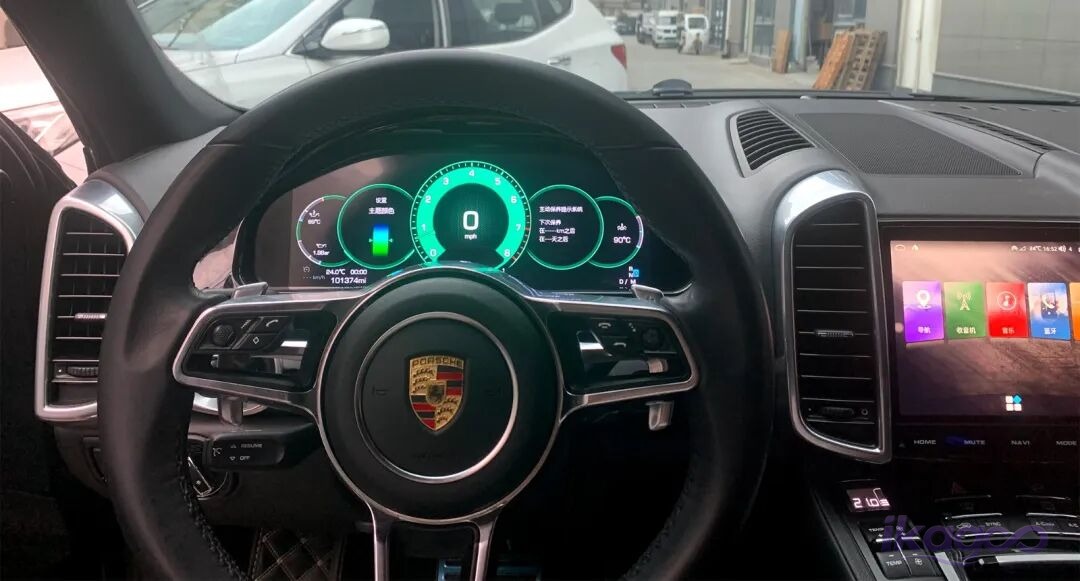

What Should the Cayenne 958 Digital Cluster Look Like After Installation?
The completed cluster should sit naturally within the original driver-display position. Check physical fit, edge alignment and dashboard clearance before every trim piece is finally restored.
What Should You Test Before Reinstalling the Dashboard Trim?
Do not use “the display turns on” as the final test. Check the vehicle information, steering controls, units and relevant settings while the cluster is still accessible.
If something needs correction, it is much easier to deal with before all surrounding dashboard trim has been reinstalled.
How Do You Configure the Porsche Cayenne Digital Cluster After Installation?

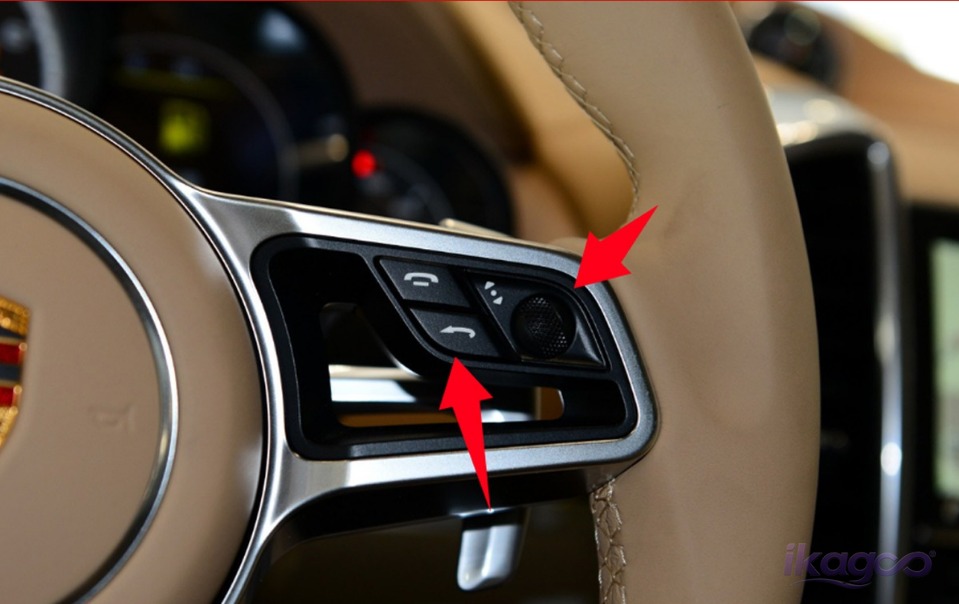

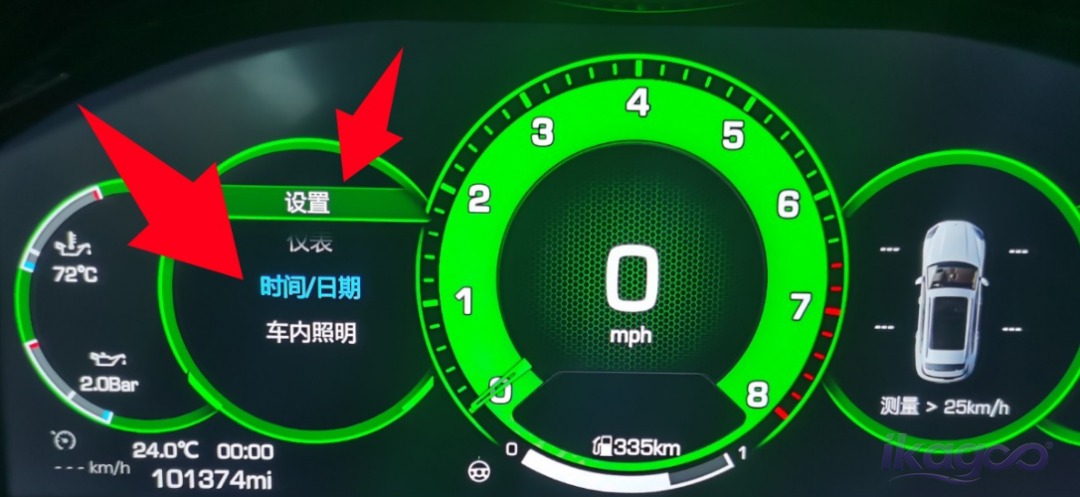

How Do You Navigate the Digital Cluster With the Steering Wheel?
Use the original right-side directional control to move through menu items, press to confirm and use the original Back function to return.

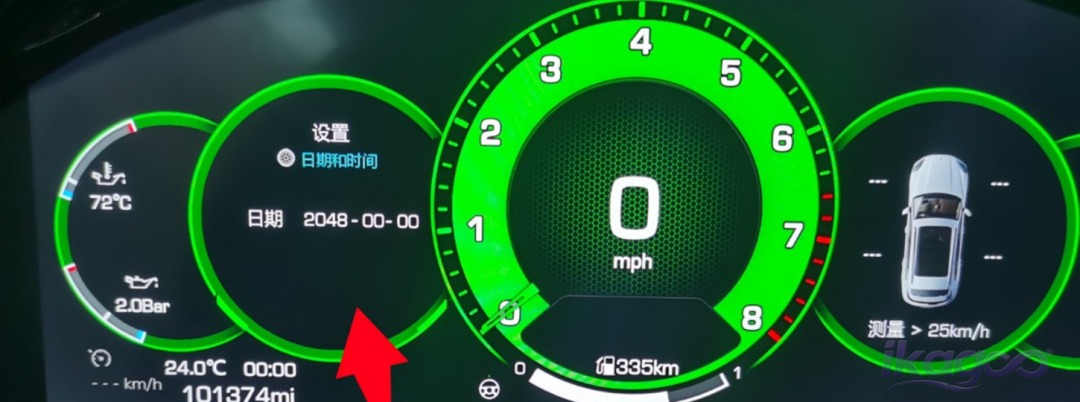

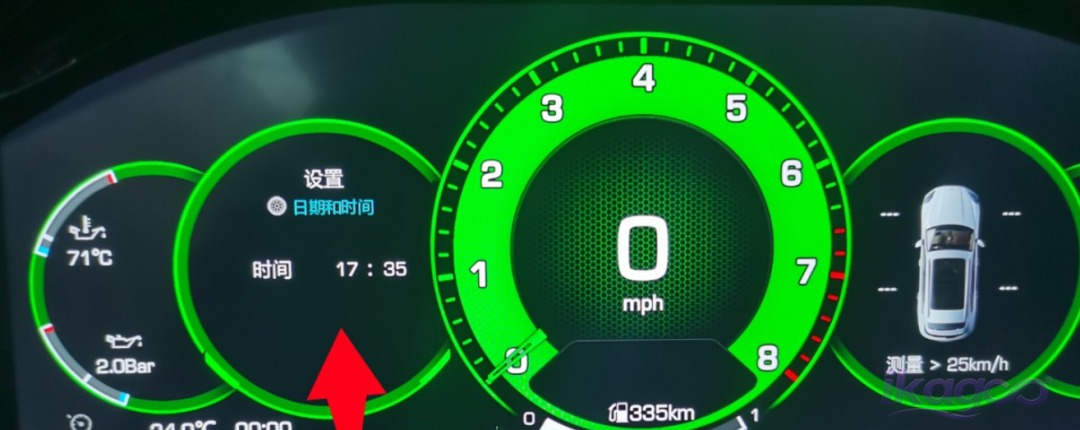

How Do You Set the Date and Time?
Enter Settings → Date & Time. Use a long press on the steering-wheel control to enter the editable fields. After saving, the documented procedure locks the vehicle for about three minutes before reopening it.

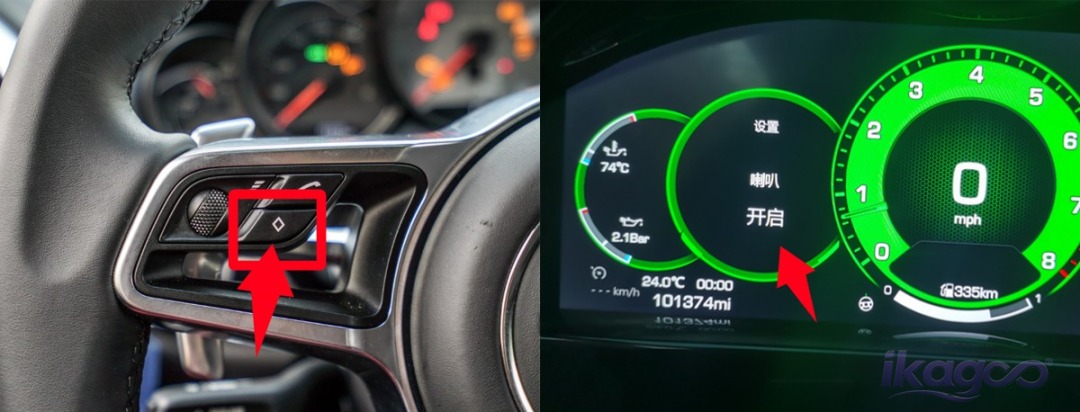

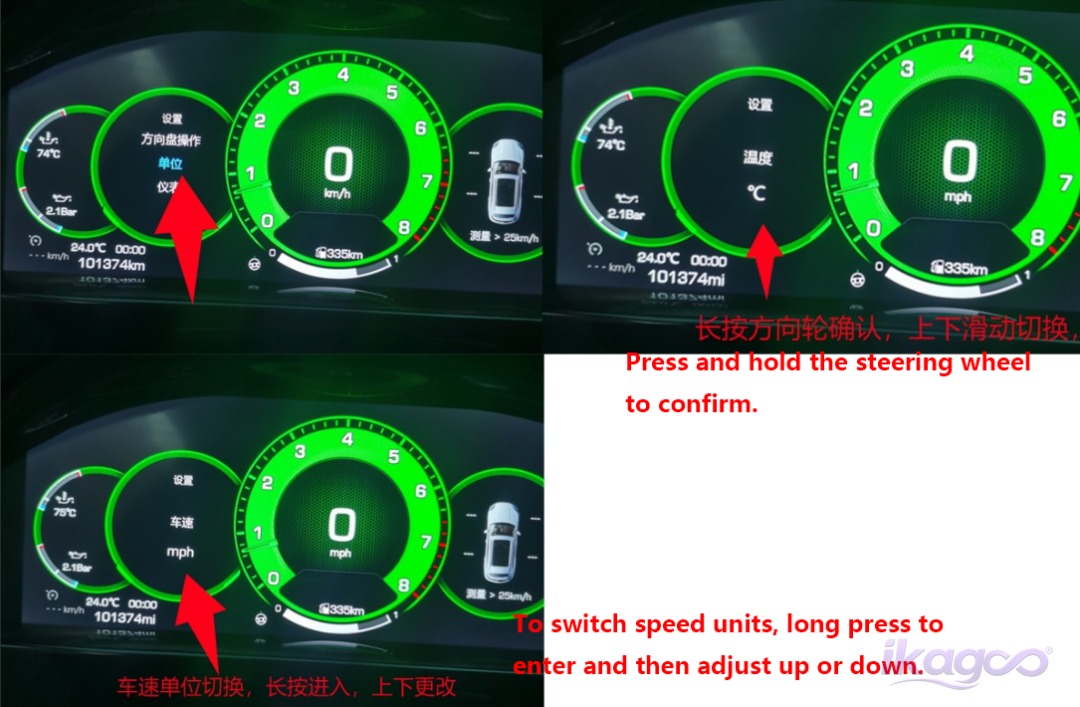

How Do You Change the Cayenne Digital Cluster From km/h to mph?
Open the unit settings and select the required kilometre/mile and temperature units. Confirm the regional configuration before normal road use.

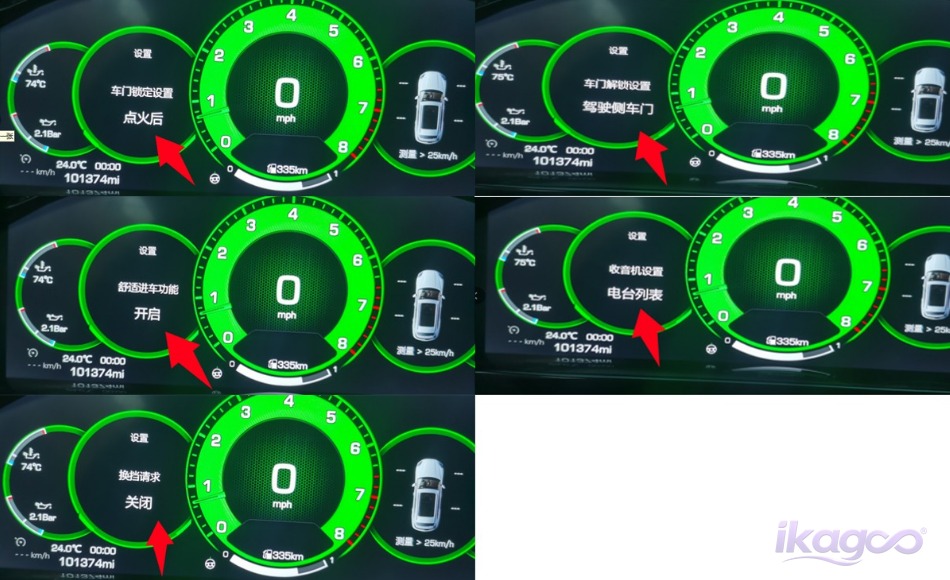

Can the Steering-Wheel Shortcut Button Be Configured?
The captured software includes a configurable shortcut. The reference shows a horn-related setting, but available assignments can vary by software revision.

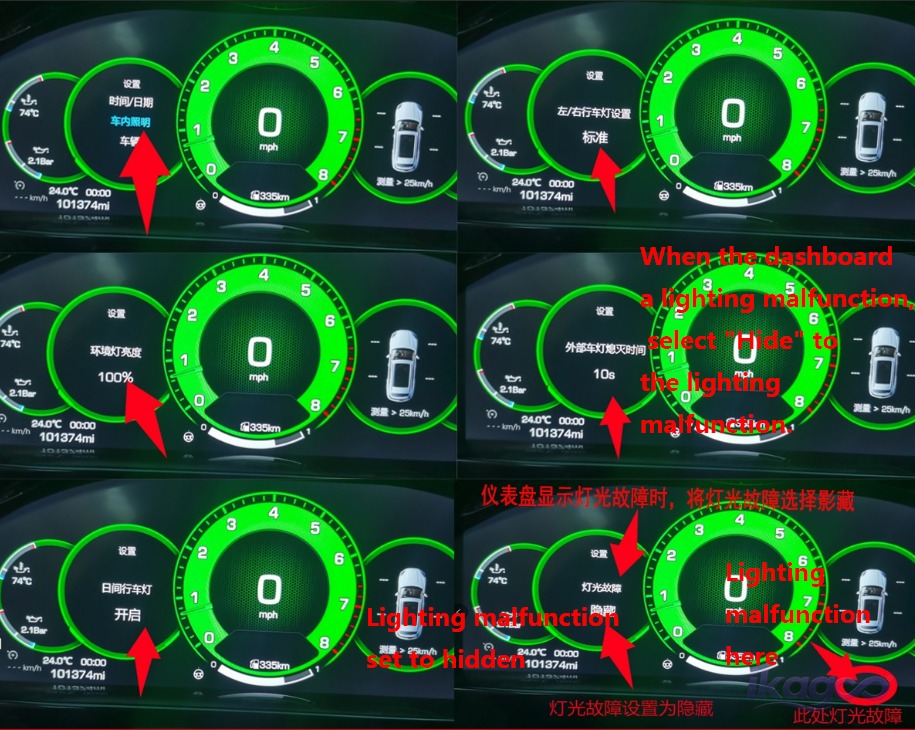

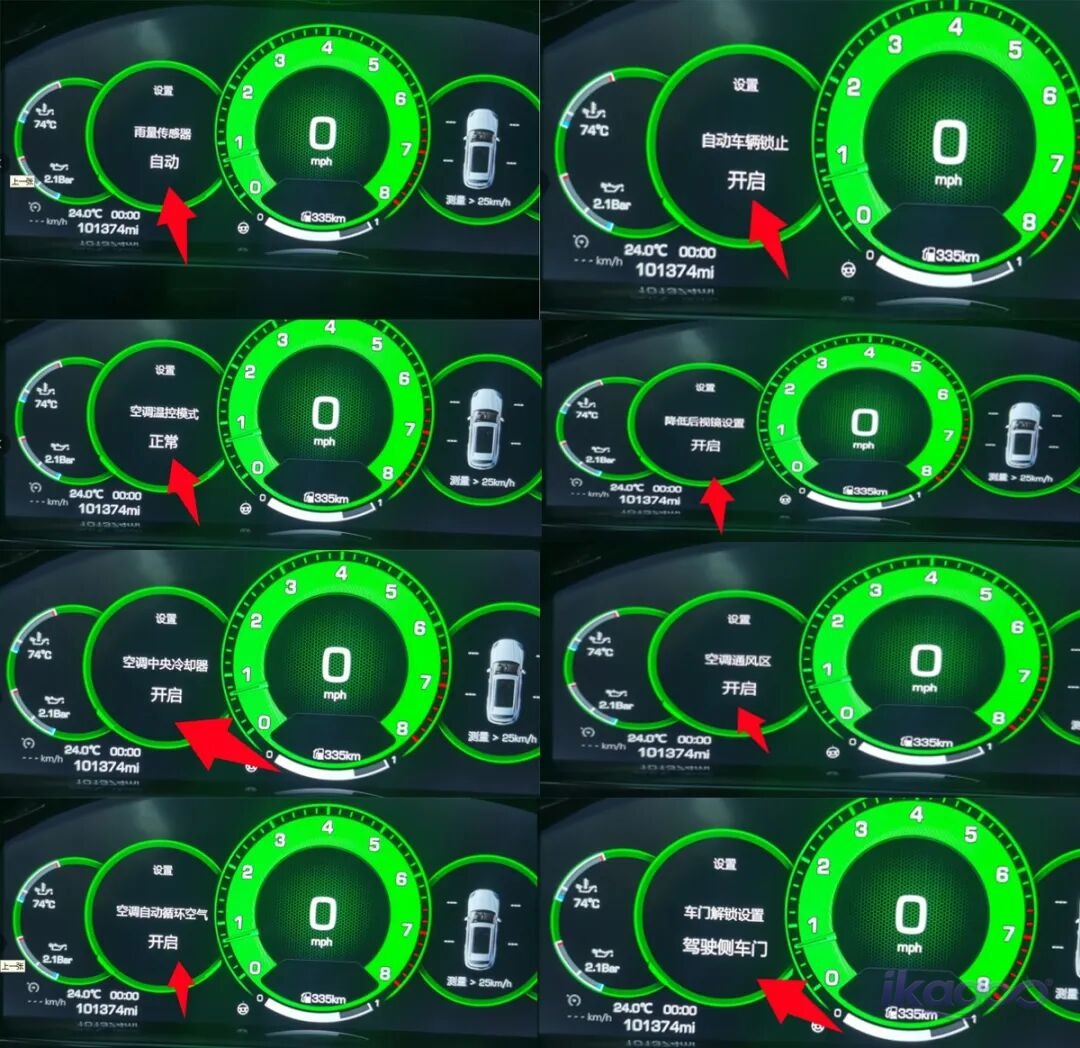

Which Vehicle Settings Should You Review After Installation?
The menu includes climate, mirror, locking, rain-sensor, speed-limit, comfort-entry, door and ventilation-related options. Configure only the settings that apply to the actual vehicle.
Which Lighting and Instrument Settings Should You Review?
Review exterior-lighting, interior-illumination and instrument-related settings against the real vehicle. Avoid changing several unrelated values at the same time.

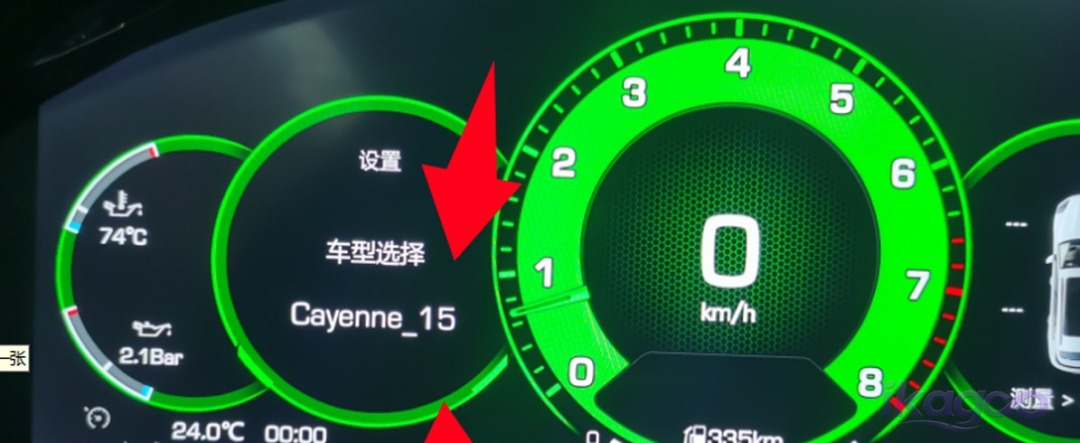

Which Vehicle Profile Is Used in This Installation?
This captured installation shows Cayenne-15. Treat that as the value used in this reference, not a universal instruction for every software revision.

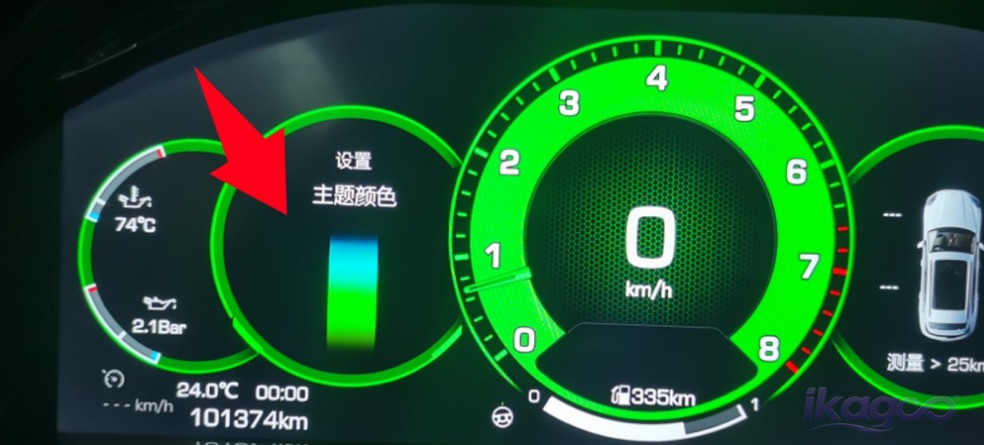

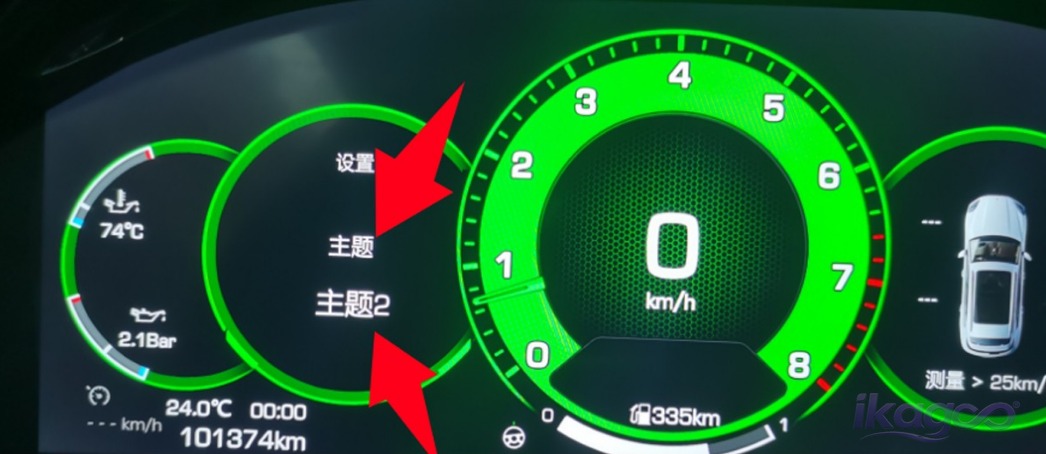

How Do You Change the Digital Instrument Theme?
Enter the Theme menu, move through the available layouts with the steering-wheel control and long-press to confirm the selected design.

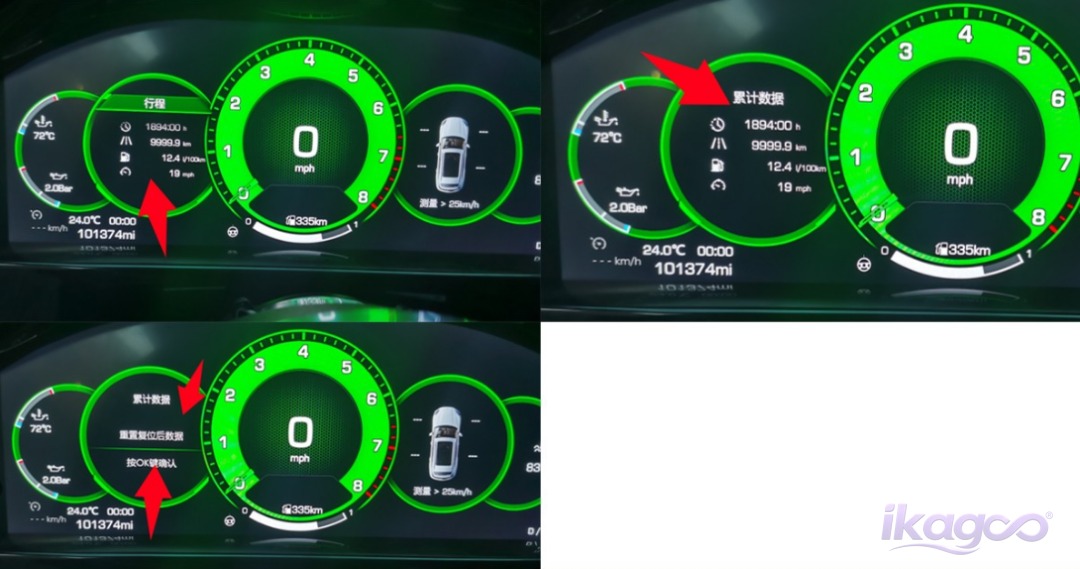

How Do You Reset Trip Information?
Move into the trip-information menu and use the documented long-press sequence to reach the reset or clear-data function.

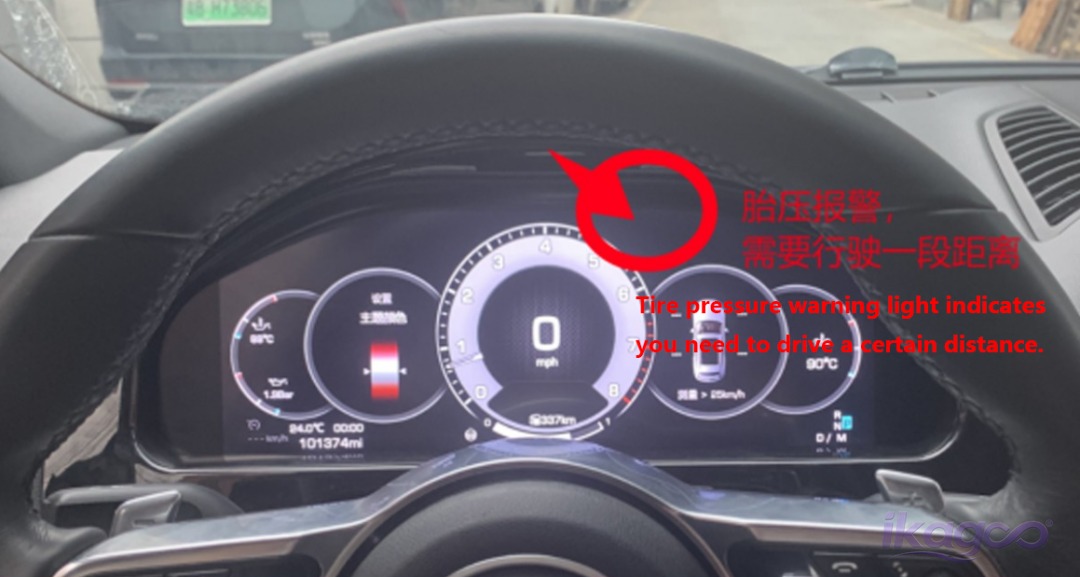

Why Can a TPMS Warning Appear After Installation?
The installation reference notes that tire-pressure information may need several minutes of driving before it is read again. A temporary warning immediately after installation does not automatically mean the cluster has failed.
If the warning remains after normal driving, check the real TPMS and vehicle condition rather than repeatedly changing cluster settings.
Is the Porsche Cayenne 958 Digital Cluster Really Plug and Play?
It uses a vehicle-specific connection route, but “plug and play” does not mean zero installation. The Cayenne 958 procedure still requires cluster removal, original-board transfer, wiring, setup and final testing.
A better description is a matched, non-destructive connection principle rather than a universal add-on display. That distinction is important when comparing products that may look similar in photographs.
What Do Porsche Cayenne Owners Commonly Ask Before Installing a Digital Cluster?
Can I install the Cayenne 958 digital cluster myself?
Experienced DIY owners may be able to complete the retrofit, but factory-cluster disassembly and original-electronics transfer make this an Advanced DIY / Level 3 job.
Which model years does this guide cover?
This reference covers the Porsche Cayenne 958 from 2011–2017, subject to actual vehicle configuration confirmation.
Do I need to keep the original instrument cluster?
Yes. Two electronic boards from the original cluster are retained in the documented installation.
Do I need to remove the complete steering wheel?
The reference shows removal of the steering-column cover, not complete steering-wheel removal.
Can I switch between mph and km/h?
Yes. The documented settings include kilometre/mile selection and temperature-unit options.
What should I test before closing the dashboard?
Check startup, speed, RPM, gear, fuel, temperature, trip information, warnings, steering-wheel controls, regional units, date/time and relevant vehicle settings.
Why might TPMS appear after installation?
Tire-pressure information may require several minutes of driving to populate again. Persistent warnings should still be diagnosed against the actual vehicle.
What if my original cluster looks different?
Stop before forcing connectors or transferring electronics and confirm the difference against the supplied product route.
Porsche Cayenne 2011–2017 Digital Cluster
Review the dedicated product page and confirm your original Cayenne 958 configuration before shipment. The final unit is prepared around the reviewed vehicle route rather than being shipped as an assumed universal version.
